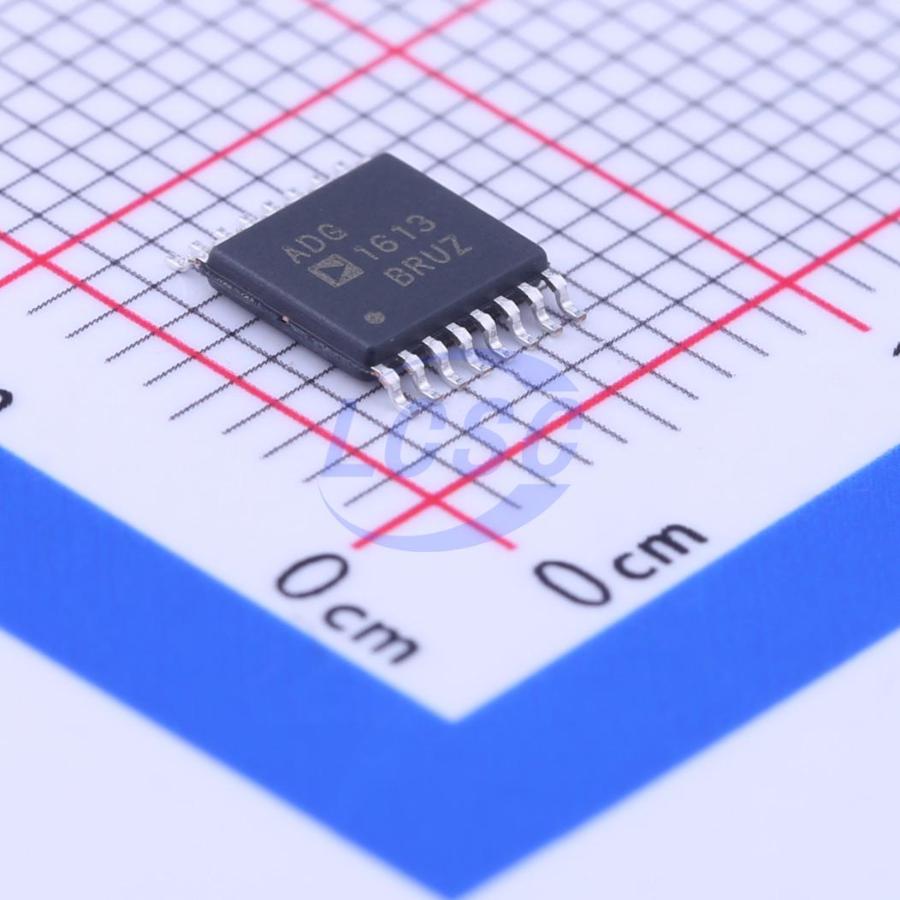

국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(11)
- con
- 154pF
- Max Supply Voltage보강
- 18V
- Number Of Channels
- 4
- ron
- 1Ω
- Operating Supply Voltage보강
- 3.3 to 16V
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- 3.3V~16V;-8V~-3.3V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-Lead TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN1 | input | Logic Control Input |
| 2 | D1 | bidirectional | Drain Terminal |
| 3 | S1 | bidirectional | Source Terminal |
| 4 | VSS | power in | Most Negative Power Supply Potential |
| 5 | GND | power in | Ground (0 V) Reference |
| 6 | S4 | bidirectional | Source Terminal |
| 7 | D4 | bidirectional | Drain Terminal |
| 8 | IN4 | input | Logic Control Input |
| 9 | IN3 | input | Logic Control Input |
| 10 | D3 | bidirectional | Drain Terminal |
| 11 | S3 | bidirectional | Source Terminal |
| 12 | NIC | no connect | Not Internally Connected |
| 13 | VDD | power in | Most Positive Power Supply Potential |
| 14 | S2 | bidirectional | Source Terminal |
| 15 | D2 | bidirectional | Drain Terminal |
| 16 | IN2 | input | Logic Control Input |
절대 최대 정격
| VDD to VSS | 18V | |
| VDD to GND | -0.3 to +18V | |
| VSS to GND | +0.3 to -18V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Peak Current, S or D | 630mA | pulsed at 1 ms, 10% duty-cycle maximum |
| Continuous Current, S or D | 175mA | TSSOP package |
| Operating Temperature Range | -40 to +125°C | Industrial (Y Version) |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage | 3.3 to 16V | single-supply |
| Supply Voltage | ±3.3 to ±8V | dual-supply |
열 특성
- theta ja
- 150.4
오더링 코드
- -REEL7
- Tape and Reel (7 inch)
