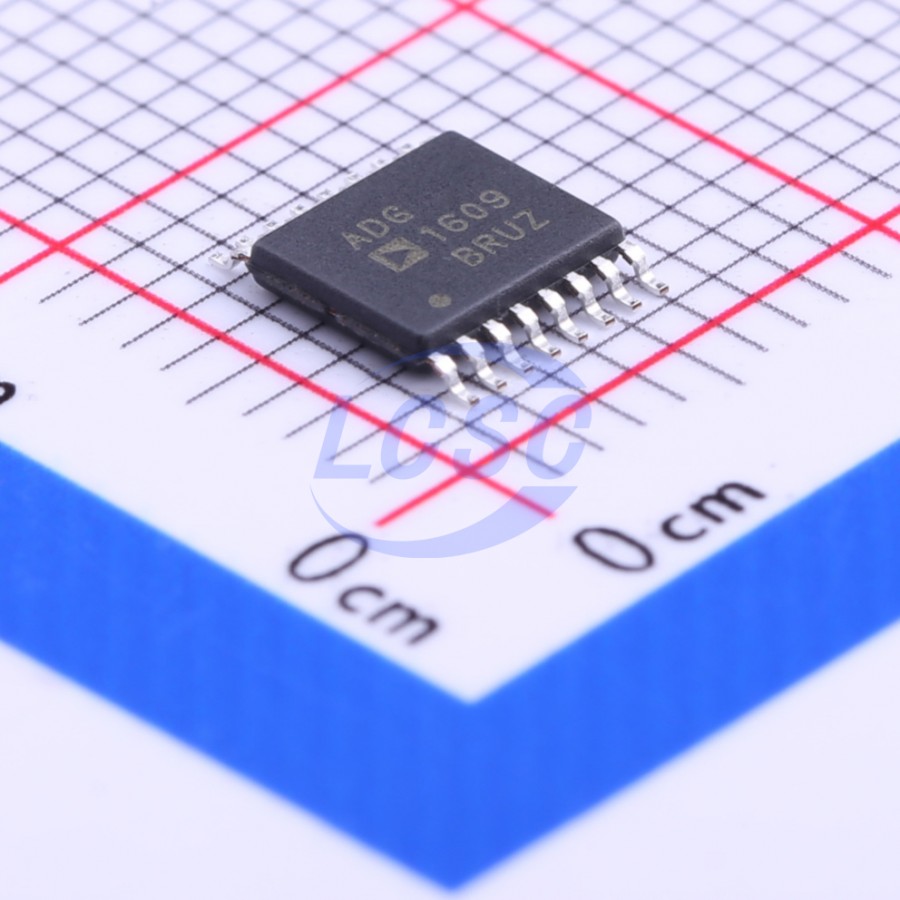

주요 스펙 요약(7)
- con
- 153pF
- Number Of Channels
- 4
- ron
- 4.5Ω
- Operating Temperature
- -40℃~+125℃
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- 3.3V~16V;-8V~-3.3V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VSS | power in | Most Negative Power Supply Potential |
| 2 | S1A | bidirectional | Source Terminal 1A |
| 3 | S2A | bidirectional | Source Terminal 2A |
| 4 | S3A | bidirectional | Source Terminal 3A |
| 5 | S4A | bidirectional | Source Terminal 4A |
| 6 | DA | bidirectional | Drain Terminal A |
| 7 | DB | bidirectional | Drain Terminal B |
| 8 | S4B | bidirectional | Source Terminal 4B |
| 9 | S3B | bidirectional | Source Terminal 3B |
| 10 | S2B | bidirectional | Source Terminal 2B |
| 11 | S1B | bidirectional | Source Terminal 1B |
| 12 | VDD | power in | Most Positive Power Supply Potential |
| 13 | GND | power in | Ground (0 V) Reference |
| 14 | A1 | input | Logic Control Input |
| 15 | A0 | input | Logic Control Input |
| 16 | EN | input | Active High Digital Input |
절대 최대 정격
| VDD to VSS | 18V | |
| VDD to GND | -0.3 to 18V | |
| VSS to GND | -18 to 0.3V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Peak Current, S or D | 710mA | pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | -40 to 125°C | Industrial |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| operating_temperature_min | -40°C | |
| operating_temperature_max | 125°C |
열 특성
- theta ja
- 112.6
