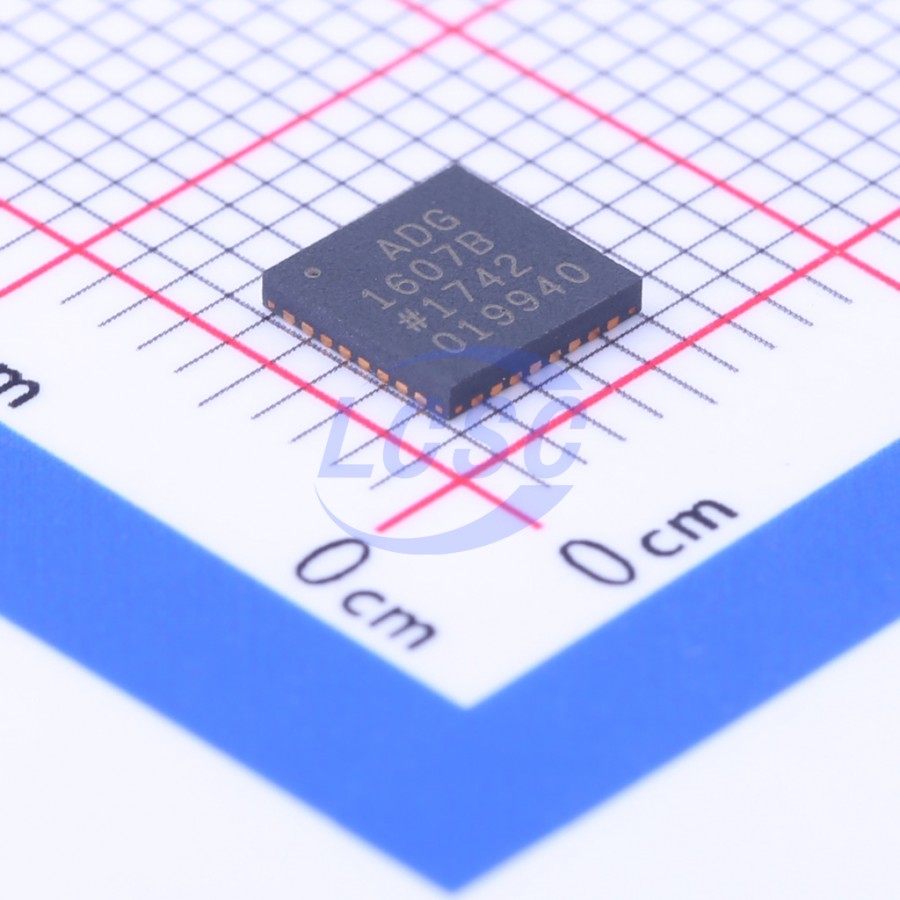

ADG1607BCPZ-REEL7

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(9)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	VDD	power in	Most Positive Power Supply Potential.
2	DB	bidirectional	Drain Terminal B.
3	NC	no connect	No Connect.
4	S8B	bidirectional	Source Terminal 8B.
5	S7B	bidirectional	Source Terminal 7B.
6	S6B	bidirectional	Source Terminal 6B.
7	S5B	bidirectional	Source Terminal 5B.
8	S4B	bidirectional	Source Terminal 4B.
9	S3B	bidirectional	Source Terminal 3B.
10	S2B	bidirectional	Source Terminal 2B.
11	S1B	bidirectional	Source Terminal 1B.
12	GND	power in	Ground (0 V) Reference.
15	A2	input	Logic Control Input.
16	A1	input	Logic Control Input.
17	A0	input	Logic Control Input.
18	EN	input	Active High Digital Input.
19	S1A	bidirectional	Source Terminal 1A.
20	S2A	bidirectional	Source Terminal 2A.
21	S3A	bidirectional	Source Terminal 3A.
22	S4A	bidirectional	Source Terminal 4A.
23	S5A	bidirectional	Source Terminal 5A.
24	S6A	bidirectional	Source Terminal 6A.
25	S7A	bidirectional	Source Terminal 7A.
26	S8A	bidirectional	Source Terminal 8A.
27	VSS	power in	Most Negative Power Supply Potential.
28	DA	bidirectional	Drain Terminal A.
29	NC	no connect	No Connect.
30	NC	no connect	No Connect.
31	NC	no connect	No Connect.
32	NC	no connect	No Connect.

VDD to VSS	18V
VDD to GND	-0.3 to +18V
VSS to GND	+0.3 to -18V
Analog Inputs	VSS - 0.3 to VDD + 0.3 or 30 mA	whichever occurs first
Digital Inputs	GND - 0.3 to VDD + 0.3 or 30 mA	whichever occurs first
Peak Current, S or D	1.1A	pulsed at 1 ms, 10% duty cycle maximum
Operating Temperature Range	-40 to +125°C	Industrial (B Version)
Storage Temperature Range	-65 to +150°C
Junction Temperature	150°C

Operating Temperature Range

-40 to +125°C
