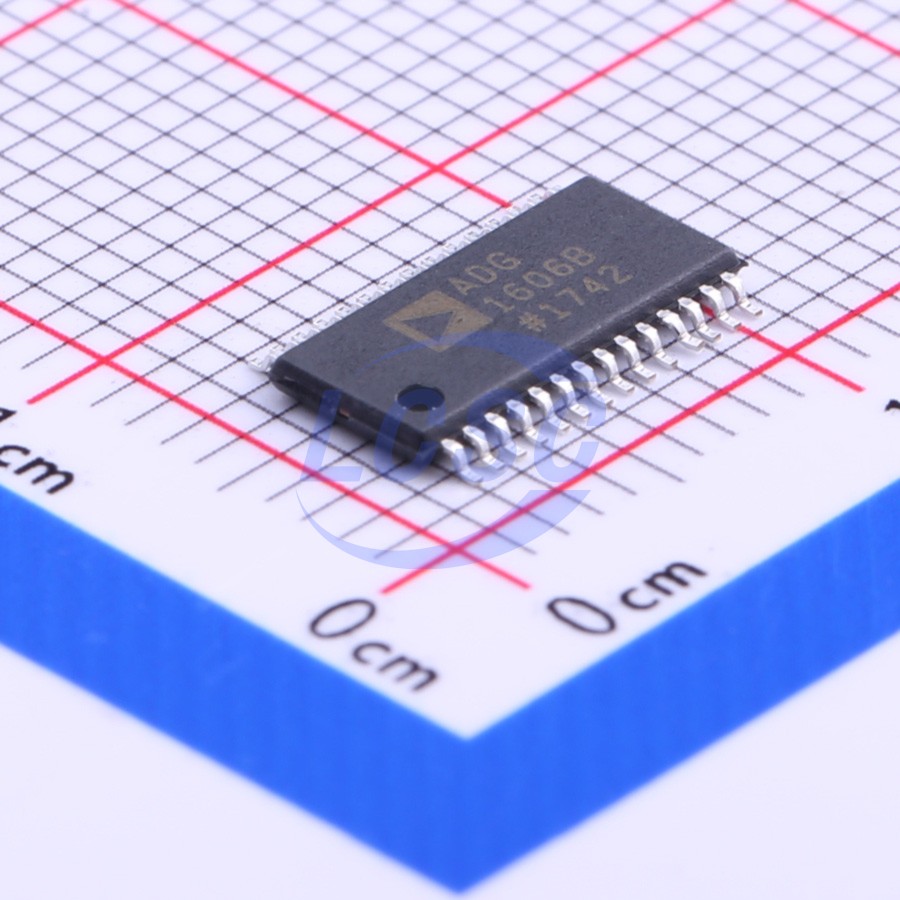

주요 스펙 요약(10)
- con
- 271pF
- Max Supply Voltage보강
- 18V
- Number Of Channels
- 1
- ron
- 4.5Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-28
- Pin Count보강
- 28
- Voltage Supply
- 3.3V~16V;3.3V~8V;-8V~-3.3V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 28-Lead TSSOP · 28 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VDD | power in | Most Positive Power Supply Potential. |
| 2 | NC | no connect | No Connect. |
| 3 | NC | no connect | No Connect. |
| 4 | S16 | bidirectional | Source Terminal 16. This pin can be an input or an output. |
| 5 | S15 | bidirectional | Source Terminal 15. This pin can be an input or an output. |
| 6 | S14 | bidirectional | Source Terminal 14. This pin can be an input or an output. |
| 7 | S13 | bidirectional | Source Terminal 13. This pin can be an input or an output. |
| 8 | S12 | bidirectional | Source Terminal 12. This pin can be an input or an output. |
| 9 | S11 | bidirectional | Source Terminal 11. This pin can be an input or an output. |
| 10 | S10 | bidirectional | Source Terminal 10. This pin can be an input or an output. |
| 11 | S9 | bidirectional | Source Terminal 9. This pin can be an input or an output. |
| 12 | GND | power in | Ground (0 V) Reference. |
| 13 | NC | no connect | No Connect. |
| 14 | A3 | input | Logic Control Input. |
| 15 | A2 | input | Logic Control Input. |
| 16 | A1 | input | Logic Control Input. |
| 17 | A0 | input | Logic Control Input. |
| 18 | EN | input | Active High Digital Input. |
| 19 | S1 | bidirectional | Source Terminal 1. This pin can be an input or an output. |
| 20 | S2 | bidirectional | Source Terminal 2. This pin can be an input or an output. |
| 21 | S3 | bidirectional | Source Terminal 3. This pin can be an input or an output. |
| 22 | S4 | bidirectional | Source Terminal 4. This pin can be an input or an output. |
| 23 | S5 | bidirectional | Source Terminal 5. This pin can be an input or an output. |
| 24 | S6 | bidirectional | Source Terminal 6. This pin can be an input or an output. |
| 25 | S7 | bidirectional | Source Terminal 7. This pin can be an input or an output. |
| 26 | S8 | bidirectional | Source Terminal 8. This pin can be an input or an output. |
| 27 | VSS | power in | Most Negative Power Supply Potential. |
| 28 | D | bidirectional | Drain Terminal. |
절대 최대 정격
| VDD to VSS | 18V | |
| VDD to GND | -0.3 to +18V | |
| VSS to GND | +0.3 to -18V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Peak Current, S or D | 1.1A | pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | -40 to +125°C | Industrial (B Version) |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage | 3.3 to 16V | single supply |
| Supply Voltage | ±3.3 to ±8V | dual supply |
열 특성
- unit
- °C/W
- theta ja
- 97.9
- theta jc
- 14
오더링 코드
- REEL7
- Tape and Reel 7 inch
