주요 스펙 요약(9)
- con
- 271pF
- Number Of Channels
- 1
- ron
- 4.5Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

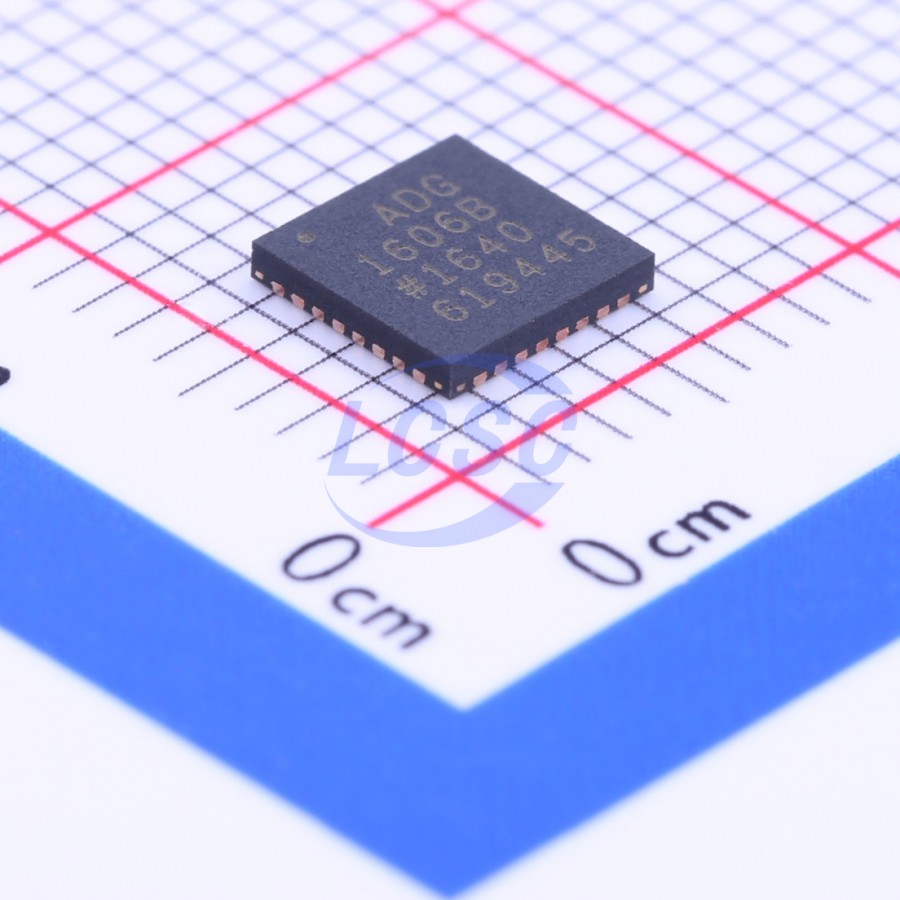

- package
- LFCSP-32(5x5)
- Pin Count보강
- 32
- Voltage Supply
- -5V~5V;3.3V~16V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 32 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VDD | power in | Most Positive Power Supply Potential. |
| 2 | NC | no connect | No Connect. |
| 3 | NC | no connect | No Connect. |
| 4 | S8B | bidirectional | Source Terminal 8B. This pin can be an input or an output. |
| 5 | S7B | bidirectional | Source Terminal 7B. This pin can be an input or an output. |
| 6 | S6B | bidirectional | Source Terminal 6B. This pin can be an input or an output. |
| 7 | S5B | bidirectional | Source Terminal 5B. This pin can be an input or an output. |
| 8 | S4B | bidirectional | Source Terminal 4B. This pin can be an input or an output. |
| 9 | S3B | bidirectional | Source Terminal 3B. This pin can be an input or an output. |
| 10 | S2B | bidirectional | Source Terminal 2B. This pin can be an input or an output. |
| 11 | S1B | bidirectional | Source Terminal 1B. This pin can be an input or an output. |
| 12 | GND | power in | Ground (0 V) Reference. |
| 13 | NC | no connect | No Connect. |
| 14 | A2 | input | Logic Control Input. |
| 15 | A1 | input | Logic Control Input. |
| 16 | A0 | input | Logic Control Input. |
| 17 | EN | input | Active High Digital Input. |
| 18 | NC | no connect | No Connect. |
| 19 | DB | bidirectional | Drain Terminal B. This pin can be an input or an output. |
| 20 | NC | no connect | No Connect. |
| 21 | NC | no connect | No Connect. |
| 22 | NC | no connect | No Connect. |
| 23 | VDD | power in | Most Positive Power Supply Potential. |
| 24 | NC | no connect | No Connect. |
| 25 | DA | bidirectional | Drain Terminal A. This pin can be an input or an output. |
| 26 | NC | no connect | No Connect. |
| 27 | VSS | power in | Most Negative Power Supply Potential. |
| 28 | NC | no connect | No Connect. |
| 29 | NC | no connect | No Connect. |
| 30 | NC | no connect | No Connect. |
| 31 | NC | no connect | No Connect. |
| 32 | NC | no connect | No Connect. |
절대 최대 정격
| VDD to VSS | 18V | |
| VDD to GND | -0.3 to 18V | |
| VSS to GND | +0.3 to -18V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Peak Current, S or D | 1.1A | pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | -40 to 125°C | Industrial (B Version) |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C |
열 특성
- unit
- °C/W
- theta ja
- 46
- theta jc
- 14
오더링 코드
- REEL7
- Tape and Reel
