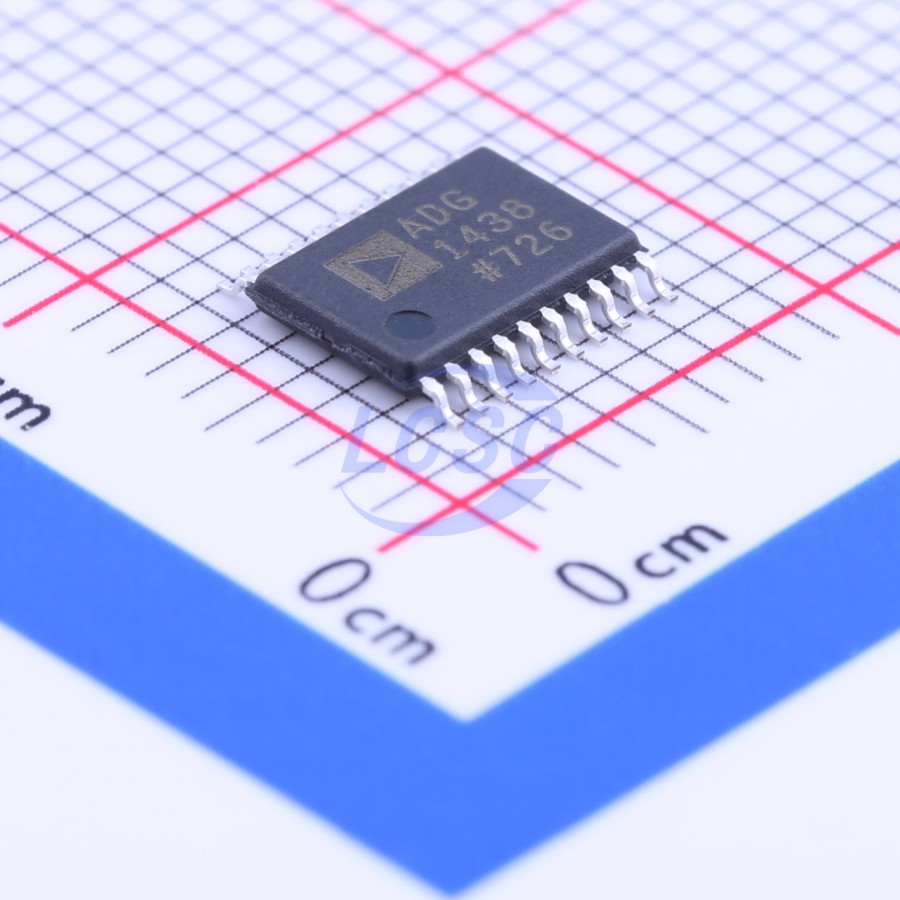

ADG1438BRUZ

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(9)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	SCLK	input	Serial Clock Input
2	VDD	power in	Most Positive Power Supply Potential
3	DIN	input	Serial Data Input
4	GND	power in	Ground (0 V) Reference
5	NIC	no connect	No Internal Connection
6	S1	bidirectional	Source Terminal 1
7	S2	bidirectional	Source Terminal 2
8	S3	bidirectional	Source Terminal 3
9	S4	bidirectional	Source Terminal 4
10	D	bidirectional	Drain Terminal
11	NIC	no connect	No Internal Connection
12	S8	bidirectional	Source Terminal 8
13	S7	bidirectional	Source Terminal 7
14	S6	bidirectional	Source Terminal 6
15	S5	bidirectional	Source Terminal 5
16	VSS	power in	Most Negative Power Supply Potential
17	RESET	input	Active Low Logic Input
18	SDO	output	Serial Data Output
19	VL	power in	Logic Power Supply Input
20	SYNC	input	Active Low Control Input

VDD to VSS	35V
VDD to GND	-0.3 to 25V
VSS to GND	0.3 to -25V
VL to GND	-0.3 to 7V
Analog Inputs	30mA	VSS - 0.3 to VDD + 0.3
Digital Inputs	30mA	GND - 0.3 to VL + 0.3
Continuous Current, Sx or Dx Pins	Table 5/6 + 15%
Peak Current, Sx or Dx Pins	300mA	TSSOP, 1ms, 10% Duty Cycle
Peak Current, Sx or Dx Pins	400mA	LFCSP, 1ms, 10% Duty Cycle
Operating Temperature Range	-40 to 125°C	Industrial (B Version)
Storage Temperature Range	-65 to 150°C
Junction Temperature	150°C

Serial Interface Frequency	50MHz
Logic Supply Voltage (VL)	2.7 to 5.5V

ADG1438BRUZ: 20-Lead TSSOP, Industrial Temp, RoHS Compliant
ADG1438BRUZ-REEL7: 20-Lead TSSOP, Industrial Temp, RoHS Compliant, Tape and Reel
