국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

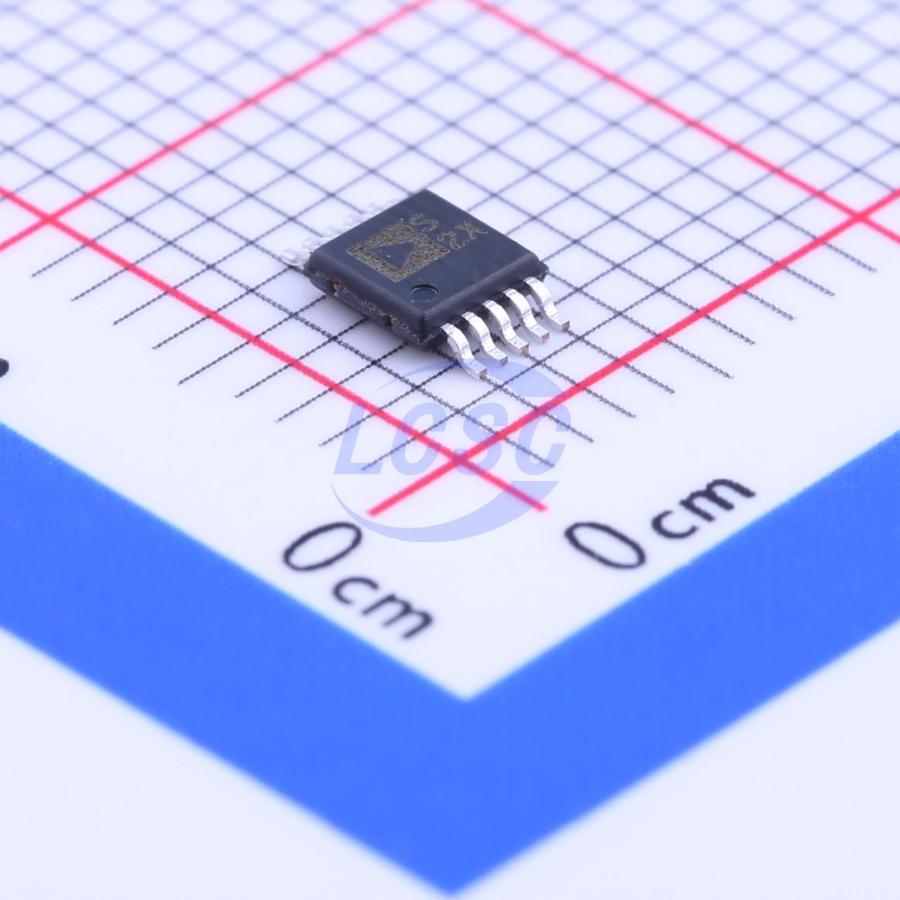

주요 스펙 요약(9)
- con
- 86pF
- Number Of Channels
- 2
- ron
- 2.4Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- MSOP-10
- Pin Count보강
- 10
- Voltage Supply
- -15V~15V;12V;-5V~5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · MSOP · 10 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | S1 | bidirectional | Source Terminal |
| 2 | S2 | bidirectional | Source Terminal |
| 3 | NC | no connect | No Connect |
| 4 | GND | power in | Ground (0 V) Reference |
| 5 | VDD | power in | Most Positive Power Supply Potential |
| 6 | IN2 | input | Logic Control Input |
| 7 | IN1 | input | Logic Control Input |
| 8 | VSS | power in | Most Negative Power Supply Potential |
| 9 | D2 | bidirectional | Drain Terminal |
| 10 | D1 | bidirectional | Drain Terminal |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | 25V | -0.3 to +25 |
| VSS to GND | 25V | +0.3 to -25 |
| Analog Inputs | 30mA | VSS - 0.3 V to VDD + 0.3 V or 30 mA |
| Digital Inputs | 30mA | GND - 0.3 V to VDD + 0.3 V or 30 mA |
| Peak Current, S or D (1 ms, 10% Duty-Cycle) | 300mA | 10-Lead MSOP |
| Peak Current, S or D (1 ms, 10% Duty-Cycle) | 400mA | 10-Lead LFCSP |
| Operating Temperature Range | 125°C | -40 to +125 |
| Storage Temperature Range | 150°C | -65 to +150 |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40°C | |
| Operating Temperature Range | 125°C |
열 특성
- unit
- °C/W
- theta ja
- 142
- theta jc
- 44
오더링 코드
- REEL7
- Tape and Reel
