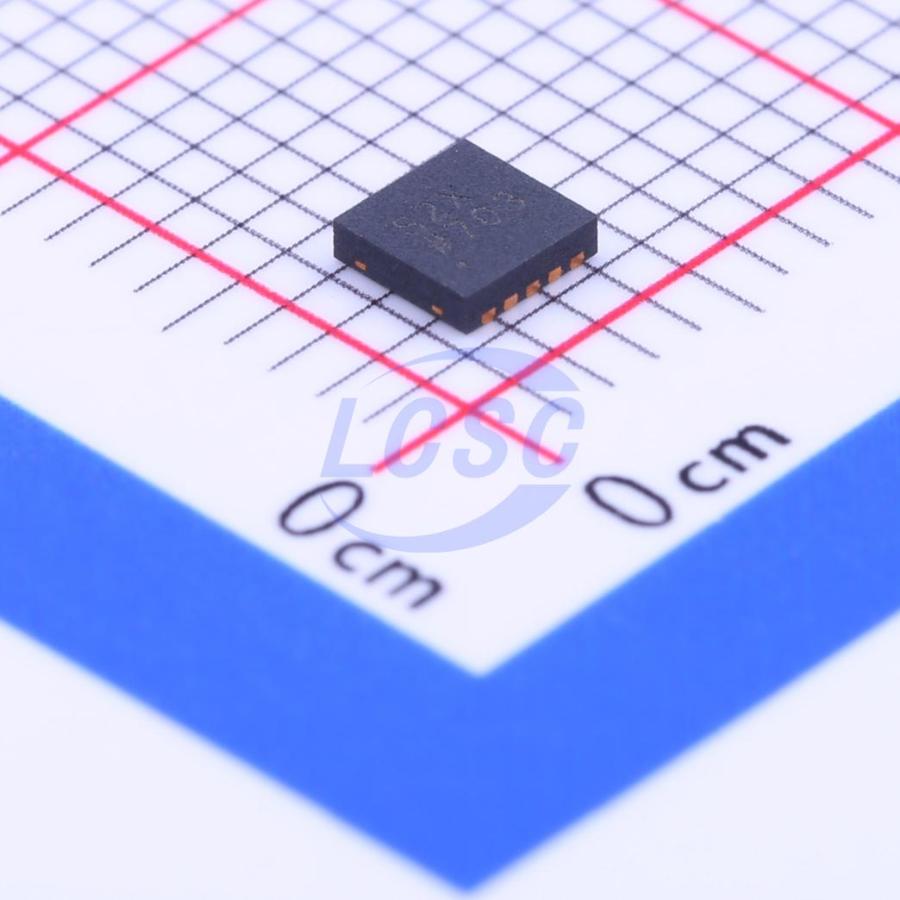

주요 스펙 요약(8)
- Number Of Channels
- 2
- ron
- 2.1Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- LFCSP-10(3x3)
- Pin Count보강
- 10
- Voltage Supply
- -15V~15V;12V;-5V~5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 10-Lead LFCSP · 10 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | S1 | bidirectional | Source Terminal |
| 2 | S2 | bidirectional | Source Terminal |
| 3 | NC | no connect | No Connect |
| 4 | GND | power in | Ground (0 V) Reference |
| 5 | VDD | power in | Most Positive Power Supply Potential |
| 6 | IN2 | input | Logic Control Input |
| 7 | IN1 | input | Logic Control Input |
| 8 | VSS | power in | Most Negative Power Supply Potential |
| 9 | D2 | bidirectional | Drain Terminal |
| 10 | D1 | bidirectional | Drain Terminal |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to +25V | |
| VSS to GND | +0.3 to -25V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Peak Current, S or D | 400mA | 10-Lead LFCSP, Pulsed at 1 ms, 10% Duty-Cycle Maximum |
| Operating Temperature Range | -40 to +125°C | |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- unit
- °C/W
- theta ja
- 76
오더링 코드
- REEL7
- Tape and Reel
