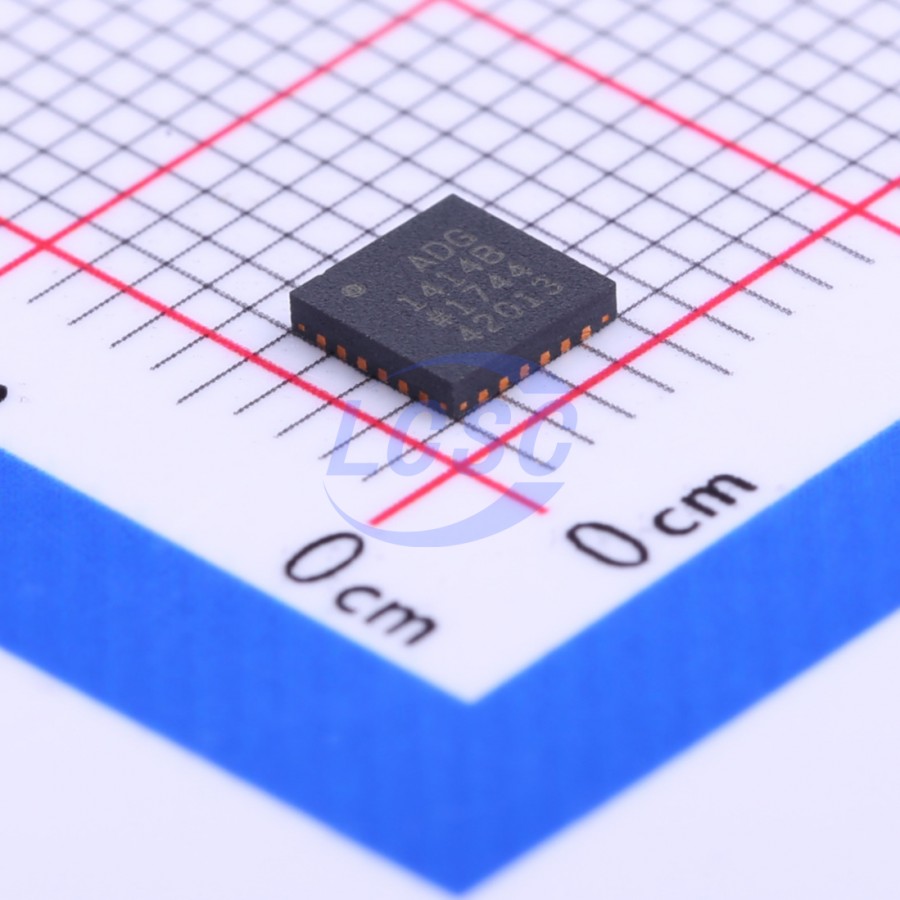

ADG1414BCPZ-REEL7

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(12)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	SCLK	input	Serial Clock Input
2	VDD	power in	Most Positive Power Supply Potential
3	DIN	input	Serial Data Input
4	GND	power in	Ground (0 V) Reference
5	S1	bidirectional	Source Terminal 1
6	D1	bidirectional	Drain Terminal 1
7	S2	bidirectional	Source Terminal 2
8	D2	bidirectional	Drain Terminal 2
9	S3	bidirectional	Source Terminal 3
10	D3	bidirectional	Drain Terminal 3
11	S4	bidirectional	Source Terminal 4
12	D4	bidirectional	Drain Terminal 4
13	D5	bidirectional	Drain Terminal 5
14	S5	bidirectional	Source Terminal 5
15	D6	bidirectional	Drain Terminal 6
16	S6	bidirectional	Source Terminal 6
17	D7	bidirectional	Drain Terminal 7
18	S7	bidirectional	Source Terminal 7
19	D8	bidirectional	Drain Terminal 8
20	S8	bidirectional	Source Terminal 8
21	VSS	power in	Most Negative Power Supply Potential
22	SDO	output	Serial Data Output
23	RESET/VL	power in	RESET/Logic Power Supply Input (VL)
24	SYNC	input	Sync Input

VDD to VSS	35V
VDD to GND	-0.3 to 25V
VSS to GND	0.3 to -25V
VL to GND	-0.3 to 7V
Analog Inputs	VSS - 0.3 to VDD + 0.3 or 30 mA	whichever occurs first
Digital Inputs	GND - 0.3 to VL + 0.3 or 30 mA	whichever occurs first
Operating Temperature Range	-40 to 125°C	Industrial (B Version)
Storage Temperature Range	-65 to 150°C
Junction Temperature	150°C

Serial Clock Frequency

50MHz
