국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

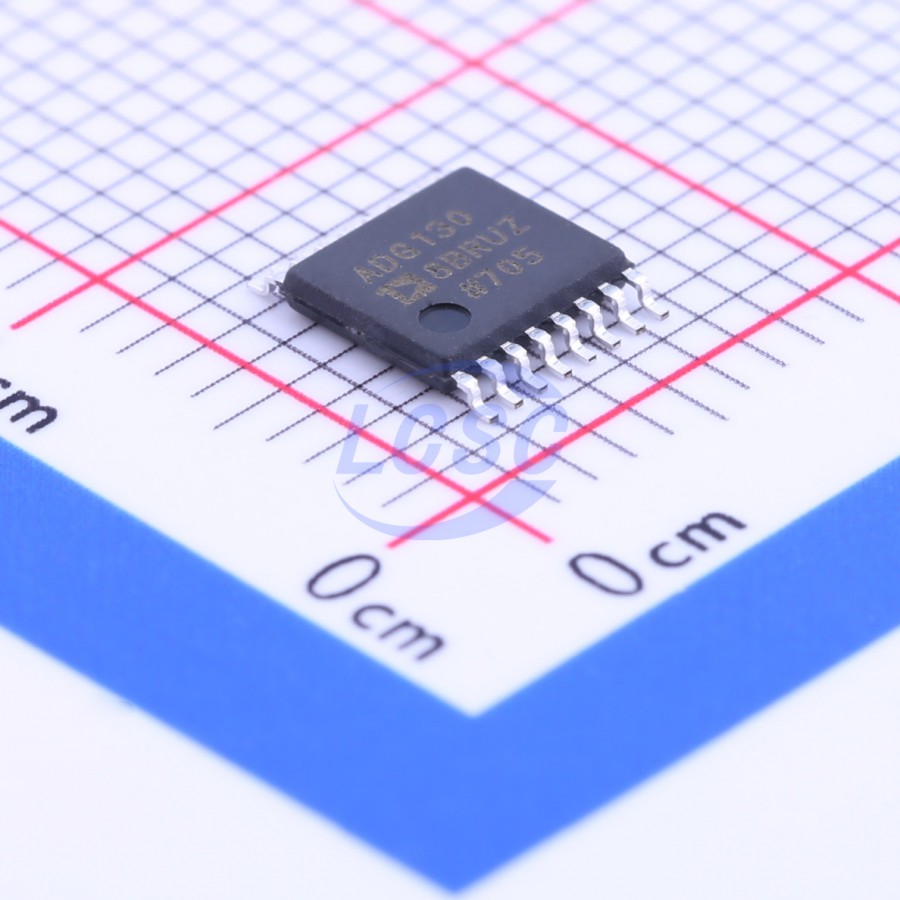

주요 스펙 요약(10)
- con
- 20pF
- Max Supply Voltage보강
- 35V
- Number Of Channels
- 1
- ron
- 130Ω
- Operating Temperature
- -40℃~+105℃
- Operating Temperature Max보강
- 105°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- -16.5V~-13.5V;13.5V~16.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP or SOIC_N · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Logic Control Input A0 |
| 2 | EN | input | Active High Digital Input |
| 3 | VSS | power in | Most Negative Power Supply Potential |
| 4 | S1 | bidirectional | Source Terminal 1 |
| 5 | S2 | bidirectional | Source Terminal 2 |
| 6 | S3 | bidirectional | Source Terminal 3 |
| 7 | S4 | bidirectional | Source Terminal 4 |
| 8 | D | bidirectional | Drain Terminal |
| 9 | S8 | bidirectional | Source Terminal 8 |
| 10 | S7 | bidirectional | Source Terminal 7 |
| 11 | S6 | bidirectional | Source Terminal 6 |
| 12 | S5 | bidirectional | Source Terminal 5 |
| 13 | VDD | power in | Most Positive Power Supply Potential |
| 14 | GND | power in | Ground (0 V) Reference |
| 15 | A2 | input | Logic Control Input A2 |
| 16 | A1 | input | Logic Control Input A1 |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to +25V | |
| VSS to GND | +0.3 to -25V | |
| Analog, Digital Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Continuous Current, S or D pins | 30mA | |
| Peak Current, S or D pins | 100mA | Pulsed at 1 ms, 10% Duty Cycle Maximum |
| Operating Temperature Range | -40 to +105°C | Industrial (B Version) |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to +105°C | Industrial (B Version) |
열 특성
- theta ja
- 112°C/W (TSSOP), 77°C/W (16-Lead SOIC)
