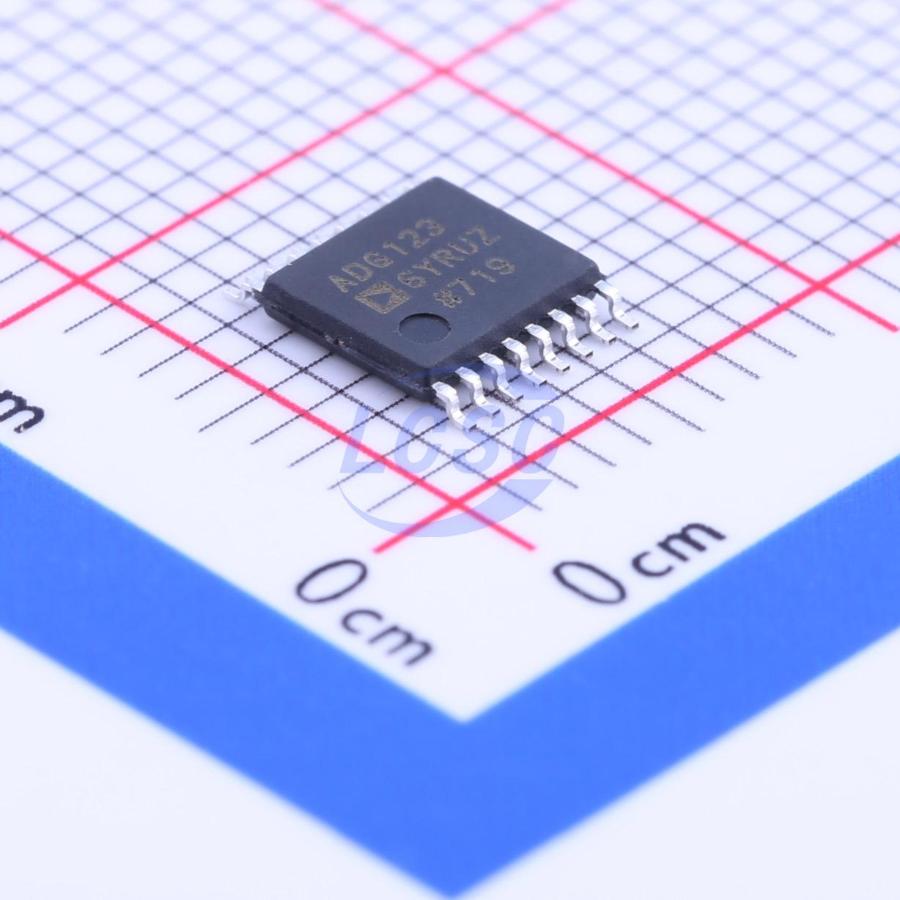

주요 스펙 요약(10)
- con
- 3.5pF
- Max Supply Voltage보강
- 35V
- Number Of Channels
- 2
- ron
- 120Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- -15V~15V;10.8V~13.2V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN1 | input | Logic Control Input |
| 2 | S1A | bidirectional | Source Terminal. Can be an input or output |
| 3 | D1 | bidirectional | Drain Terminal. Can be an input or output |
| 4 | S1B | bidirectional | Source Terminal. Can be an input or output |
| 5 | VSS | power in | Most Negative Power Supply Potential |
| 6 | GND | power in | Ground (0 V) Reference |
| 7 | NC | no connect | No Connect |
| 8 | NC | no connect | No Connect |
| 9 | VDD | power in | Most Positive Power Supply Potential |
| 10 | S2B | bidirectional | Source Terminal. Can be an input or output |
| 11 | D2 | bidirectional | Drain Terminal. Can be an input or output |
| 12 | S2A | bidirectional | Source Terminal. Can be an input or output |
| 13 | IN2 | input | Logic Control Input |
| 14 | NC | no connect | No Connect |
| 15 | NC | no connect | No Connect |
| 16 | NC | no connect | No Connect |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to +25V | |
| VSS to GND | +0.3 to -25V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Peak Current, S or D | 100mA | pulsed at 1 ms, 10% duty cycle max |
| Continuous Current per Channel, S or D | 25mA |
권장 동작 조건
| Operating Temperature Range (Automotive) | -40 to +125°C |
열 특성
- theta ja
- 112
등급 · 신뢰성
- aec q
- Y Version
