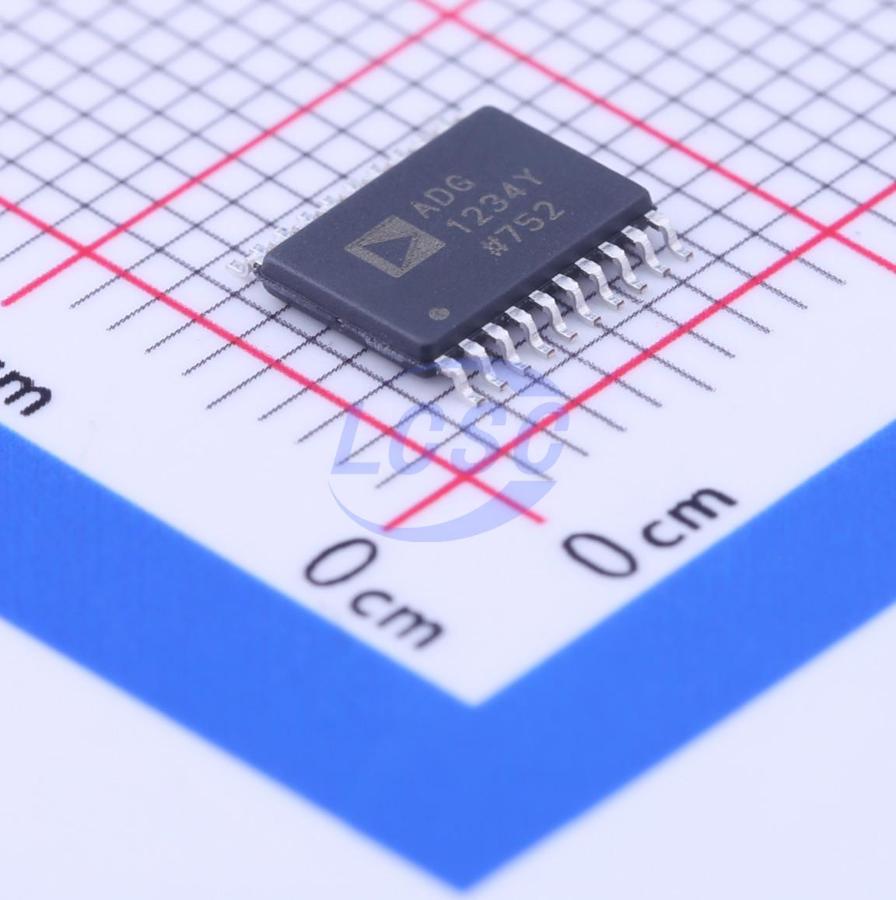

ADG1234YRUZ

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(9)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	IN1	input	None
2	S2A	bidirectional	None
3	D2	output	None
4	IN2	input	None
5	S1B	bidirectional	None
6	GND	power in	None
7	VSS	power in	None
8	IN3	input	None
9	S3A	bidirectional	None
10	D3	output	None
11	S3B	bidirectional	None
12	EN	input	None
13	VDD	power in	None
14	IN4	input	None
15	S4A	bidirectional	None
16	D4	output	None
17	S4B	bidirectional	None
18	EN	input	None
19	VSS	power in	None
20	VDD	power in	None

VDD to VSS	35V
VDD to GND	-0.3 to 25V
VSS to GND	0.3 to -25V
Analog Inputs	VSS - 0.3 to VDD + 0.3V	or 30 mA
Digital Inputs	GND - 0.3 to VDD + 0.3V	or 30 mA
Continuous Current, S or D	24mA
Peak Current, S or D	100mA	Pulsed at 1 ms, 10% Duty Cycle
Operating Temperature Range	-40 to 125°C
Storage Temperature Range	-65 to 150°C
Junction Temperature	150°C

Operating Temperature Range

-40 to 125°C
