주요 스펙 요약(9)
- con
- 3pF
- Number Of Channels
- 4
- ron
- 260Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package

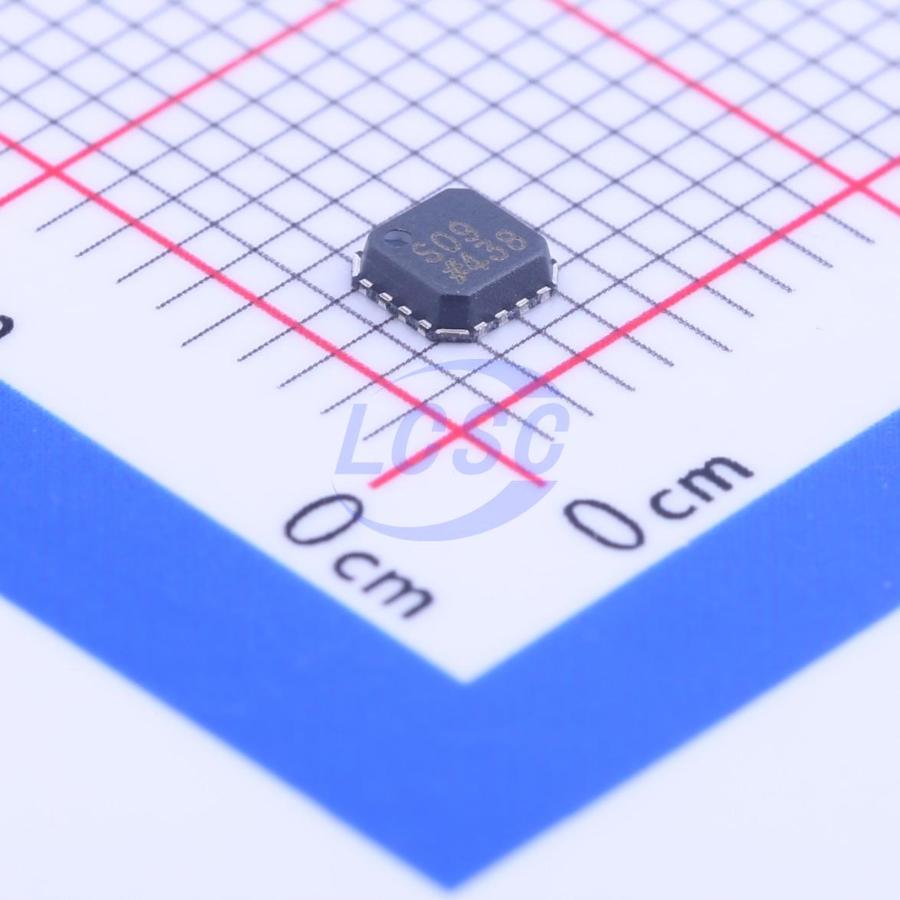

- LFCSP-16(3x3)
- Pin Count보강
- 16
- Voltage Supply
- 4.5V~16.5V;-16.5V~-4.5V;5V~16.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | S1 | bidirectional | Source Terminal. Can be an input or output. |
| 2 | VSS | power in | Most Negative Power Supply Potential. |
| 3 | GND | power in | Ground (0 V) Reference. |
| 4 | S4 | bidirectional | Source Terminal. Can be an input or output. |
| 5 | D4 | bidirectional | Drain Terminal. Can be an input or output. |
| 6 | IN4 | input | Logic Control Input. |
| 7 | IN3 | input | Logic Control Input. |
| 8 | D3 | bidirectional | Drain Terminal. Can be an input or output. |
| 9 | S3 | bidirectional | Source Terminal. Can be an input or output. |
| 10 | NC | no connect | No Internal Connection. |
| 11 | VDD | power in | Most Positive Power Supply Potential. |
| 12 | S2 | bidirectional | Source Terminal. Can be an input or output. |
| 13 | D2 | bidirectional | Drain Terminal. Can be an input or output. |
| 14 | IN2 | input | Logic Control Input. |
| 15 | D1 | bidirectional | Drain Terminal. Can be an input or output. |
| 16 | IN1 | input | Logic Control Input. |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to +25V | |
| VSS to GND | +0.3 to -25V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | or 30 mA |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 30 mA |
| Peak Current, S or D | 100mA | pulsed at 1 ms, 10% duty cycle max |
| Continuous Current per Channel, S or D | 25mA | |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range (Automotive) | -40 to +125°C |
열 특성
- unit
- °C/W
- theta ja
- 72.7
등급 · 신뢰성
- aec q
- Y Version (Automotive)
오더링 코드
- 500RL7
- Tape and Reel
