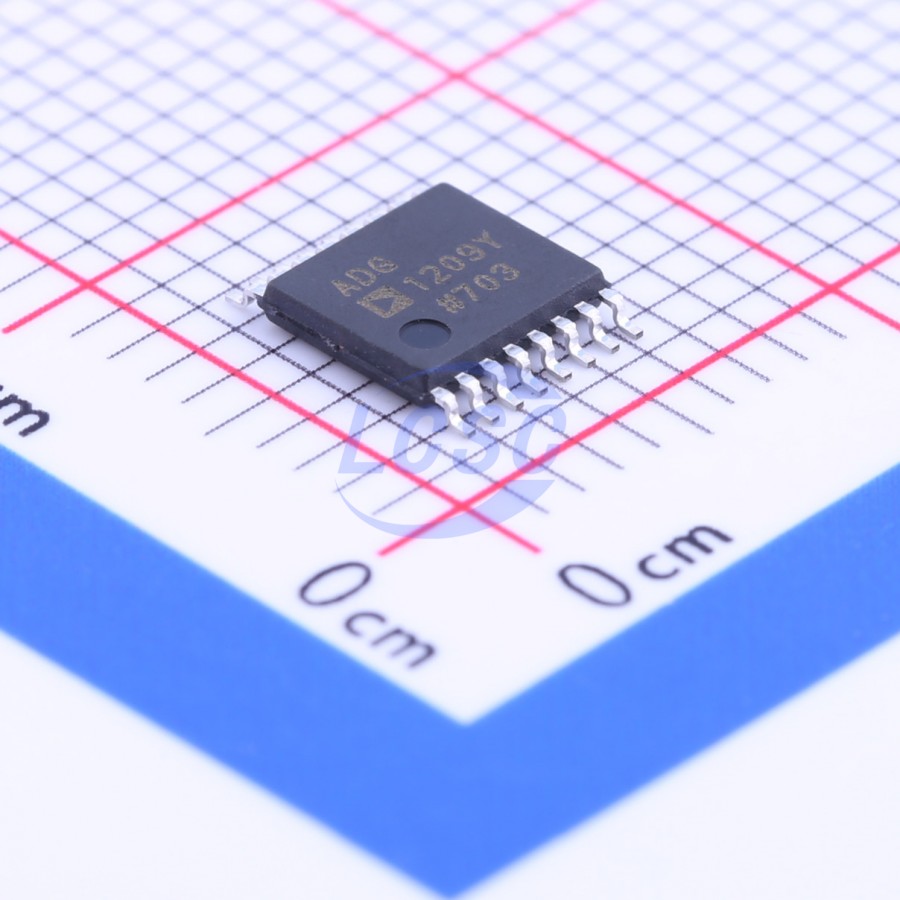

주요 스펙 요약(9)
- con
- 5pF
- Number Of Channels
- -
- ron
- 120Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- -16.5V~-5V;5V~16.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-Lead TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Logic Control Input |
| 2 | EN | input | Active High Digital Input |
| 3 | VSS | power in | Most Negative Power Supply Potential |
| 4 | S1A | bidirectional | Source Terminal 1A |
| 5 | S2A | bidirectional | Source Terminal 2A |
| 6 | S3A | bidirectional | Source Terminal 3A |
| 7 | S4A | bidirectional | Source Terminal 4A |
| 8 | DA | bidirectional | Drain Terminal A |
| 9 | DB | bidirectional | Drain Terminal B |
| 10 | S4B | bidirectional | Source Terminal 4B |
| 11 | S3B | bidirectional | Source Terminal 3B |
| 12 | S2B | bidirectional | Source Terminal 2B |
| 13 | S1B | bidirectional | Source Terminal 1B |
| 14 | VDD | power in | Most Positive Power Supply Potential |
| 15 | GND | power in | Ground (0 V) Reference |
| 16 | A1 | input | Logic Control Input |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to +25V | |
| VSS to GND | +0.3 to -25V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Continuous Current, S or D | 30mA | |
| Peak Current, S or D | 100mA | Pulsed at 1 ms, 10% Duty Cycle Maximum |
| Operating Temperature Range | -40 to +125°C | Industrial (Y Version) |
| Storage Temperature | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 112
오더링 코드
- YRUZ
- 16-Lead Thin Shrink Small Outline Package [TSSOP], RoHS Compliant
- YRUZ-REEL7
- 16-Lead Thin Shrink Small Outline Package [TSSOP], RoHS Compliant, Tape and Reel
