국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(6)
- con
- 5.5pF
- Number Of Channels
- 4
- ron
- 120Ω
- Operating Temperature
- -40℃~+125℃

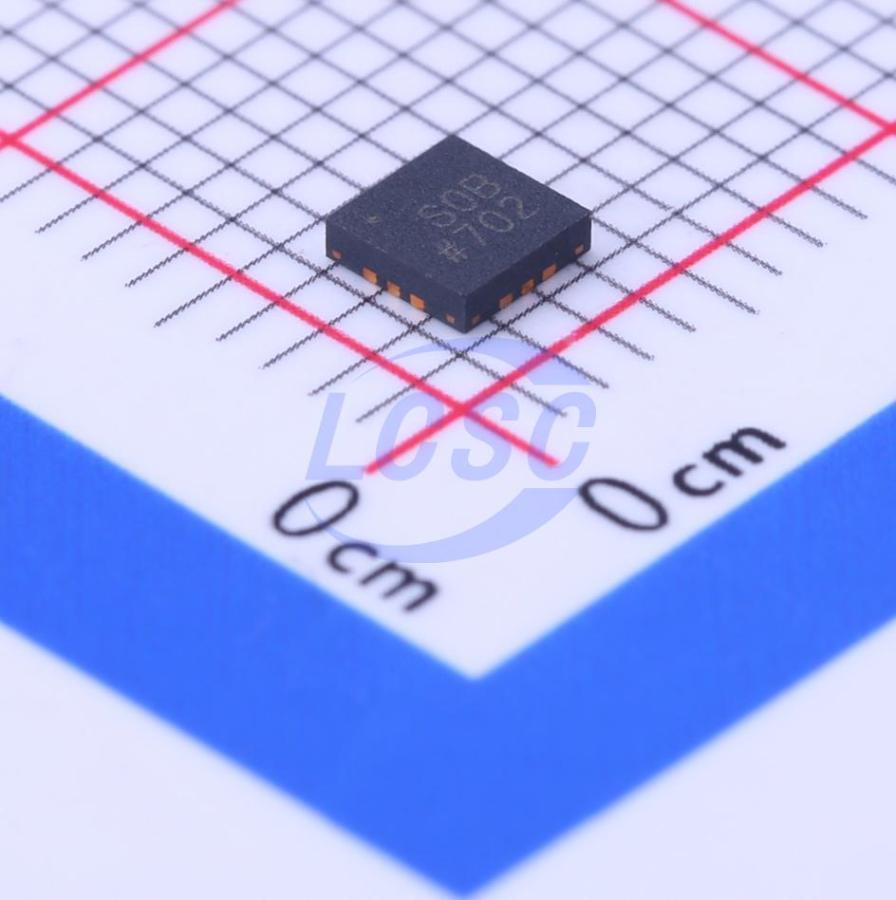

- package
- LFCSP-12(3x3)
- Voltage Supply
- -15V~15V;12V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 12 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VSS | power in | Most Negative Power Supply Potential |
| 2 | S1 | bidirectional | Source Terminal. Can be an input or an output. |
| 3 | S2 | bidirectional | Source Terminal. Can be an input or an output. |
| 4 | GND | power in | Ground (0 V) Reference |
| 5 | VDD | power in | Most Positive Power Supply Potential |
| 6 | S3 | bidirectional | Source Terminal. Can be an input or an output. |
| 7 | D | bidirectional | Drain Terminal. Can be an input or an output. |
| 8 | NC | no connect | No Connection. DO NOT CONNECT TO THIS PIN. |
| 9 | S4 | bidirectional | Source Terminal. Can be an input or an output. |
| 10 | EN | input | Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determi |
| 11 | A0 | input | Logic Control Input. |
| 12 | A1 | input | Logic Control Input. |
절대 최대 정격
| VDD to VSS | 35V | |
| VDD to GND | -0.3 to 25V | |
| VSS to GND | 0.3 to -25V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 30 mA, whichever occurs first |
| Peak Current, S or D | 100mA | pulsed at 1 ms, 10% duty cycle maximum |
| Continuous Current | 45mA | |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range (Automotive) | -40 to 125°C |
열 특성
- unit
- °C/W
- theta ja
- 80
등급 · 신뢰성
- aec q
- Y Version (Automotive)
오더링 코드
- ADG1204YCPZ-500RL7
- 12-Lead LFCSP, -40°C to +125°C
