주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr
- 88dB
- Dual Supply
- -
- Gain Bandwidth Product검증
- 220MHz
- Ib Input Bias Current
- 6pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 2pA
- Input Offset Voltage Drift Vos Tc
- 6uV/℃
- Vos Input Offset Voltage
- 2.5mV
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 125mA
- Quiescent Current
- 4.4mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 2.7 to 5.5V
- Slew Rate검증
- 210V/us
- Noise Density E N
- 9nV/√Hz@1MHz

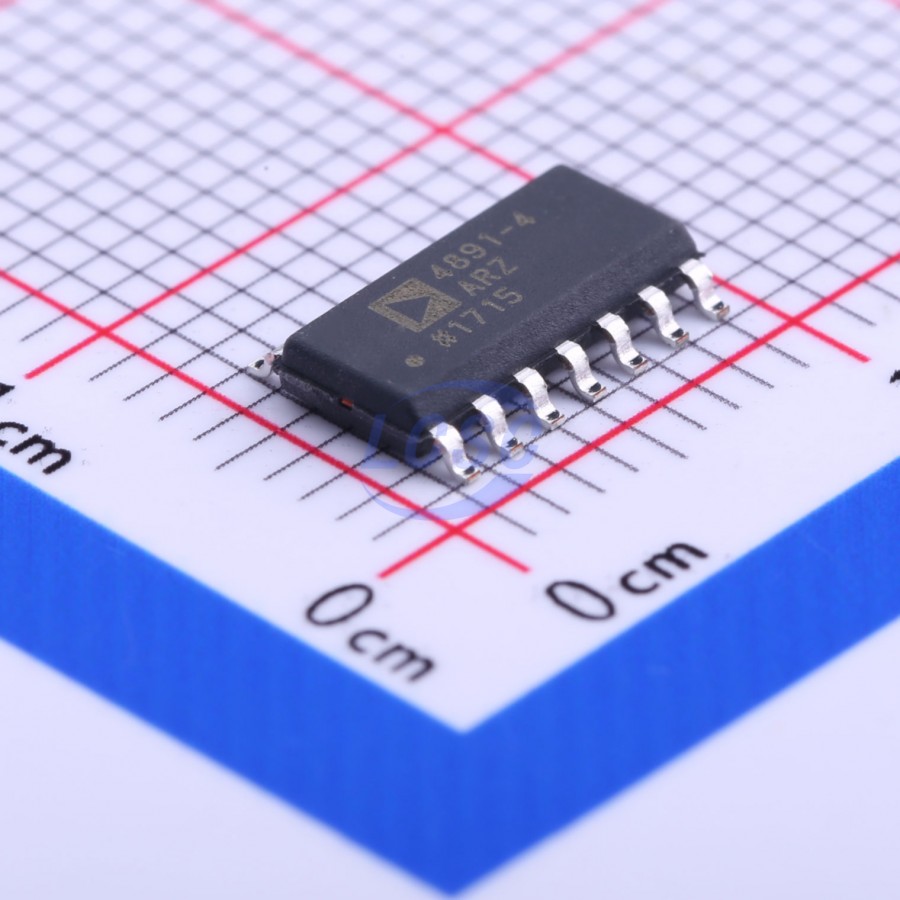

- package
- SOIC-14
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-pin SOIC_N (R-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT1 | output | None |
| 2 | OUT2 | output | None |
| 3 | OUT3 | output | None |
| 4 | OUT4 | output | None |
| 5 | +IN4 | input | None |
| 6 | -IN4 | input | None |
| 7 | -IN3 | input | None |
| 8 | +IN3 | input | None |
| 9 | +IN1 | input | None |
| 10 | -IN1 | input | None |
| 11 | +IN2 | input | None |
| 12 | +VS | power in | None |
| 13 | -VS | power in | None |
| 14 | +IN2 | input | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage (Common Mode) | -VS - 0.5 to +VS | |
| Differential Input Voltage | ±VS | |
| Storage Temperature Range | -65 to +125°C | |
| Operating Temperature Range | -40 to +125°C | |
| Pin Temperature (Solder, 10s) | 300°C |
권장 동작 조건
| Supply Voltage Range | 2.7 to 5.5V |
열 특성
- unit
- °C/W
- theta ja
- 162
등급 · 신뢰성
- aec q
- Available for W suffix versions
오더링 코드
- ARZ
- SOIC_N package, RoHS compliant
- R7
- 7 inch reel
- RL
- 13 inch reel
