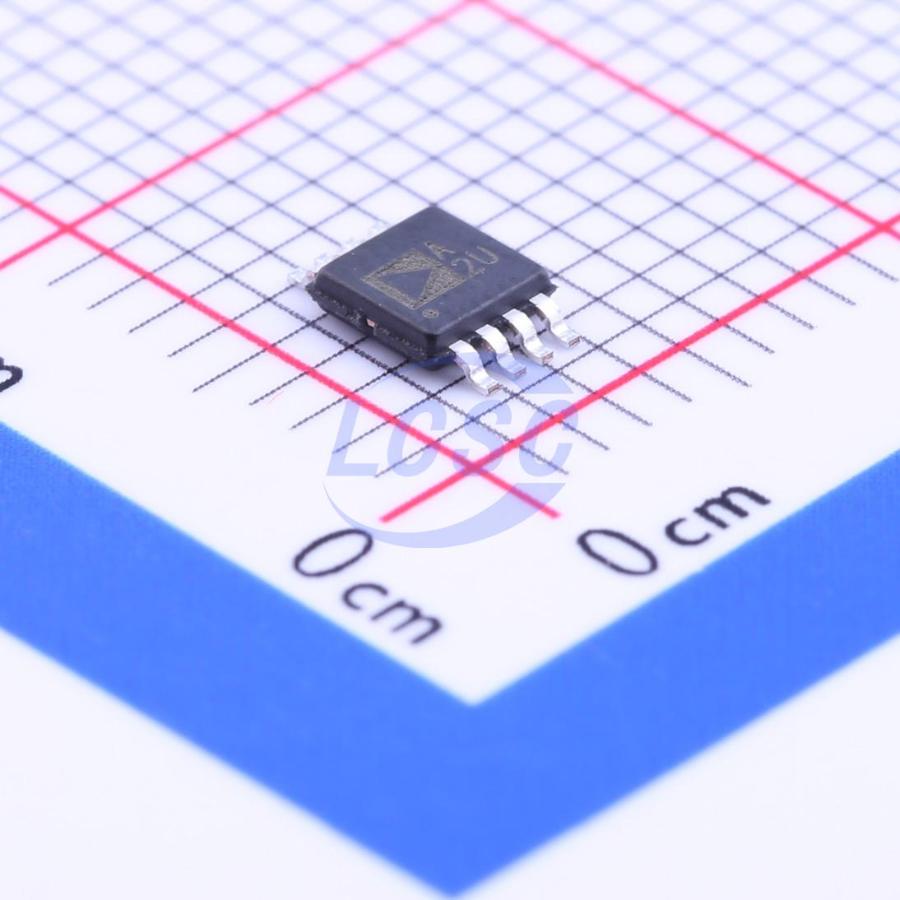

주요 스펙 요약(24)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Dual Supply
- -15 to 15V
- Gain Bandwidth Product검증
- 15.4MHz
- Ib Input Bias Current
- 25pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 20pA
- Input Offset Voltage Drift Vos Tc
- 4uV/℃
- Vos Input Offset Voltage보강
- 1mV
- Maximum Power Supply Range Vdd Vss
- 30V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 63mA
- Quiescent Current
- 1.7mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- -
- Slew Rate검증
- 151V/us
- Input Bias Current보강
- 5pA
- Max Supply Voltage보강
- 18V
- Noise Density E N
- 7.3nV/√Hz@1kHz
- Number Of Circuits보강
- 2
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- MSOP-8
- Voltage Gain보강
- 104dB
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | Output Channel A |
| 2 | -IN A | input | Inverting Input Channel A |
| 3 | +IN A | input | Noninverting Input Channel A |
| 4 | V- | power in | Negative Supply Voltage |
| 5 | +IN B | input | Noninverting Input Channel B |
| 6 | -IN B | input | Inverting Input Channel B |
| 7 | OUT B | output | Output Channel B |
| 8 | V+ | power in | Positive Supply Voltage |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage | 18V | ±VS |
| Input Current | 10mA | ± |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C | |
| Lead Temperature (Soldering, 10 sec) | 300°C |
권장 동작 조건
| Supply Voltage | 5V | ± |
| Supply Voltage | 15V | ± |
열 특성
- theta ja
- 142
- theta jc
- 45
등급 · 신뢰성
- esd cdm
- 1250
- esd hbm
- 2500
오더링 코드
- R7
- Tape and Reel
- RL
- Tape and Reel
