주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr보강
- 105dB
- Dual Supply
- -2.5V~-900mV;900mV~2.5V
- Gain Bandwidth Product검증
- 50kHz
- Ib Input Bias Current
- 0.5pA
- Input Bias Current보강
- 0.5pA
- Input Offset Current Ios
- 1pA
- Input Offset Voltage Drift Vos Tc
- 95uV/℃
- Vos Input Offset Voltage보강
- 0.5mV
- Noise Density E N
- 65nV/√Hz@1kHz
- Number Of Channels검토
- Four channels데이터시트: 4 (p.1)
- Operating Temperature
- -40℃~+125℃
- Output Current
- 3.8mA

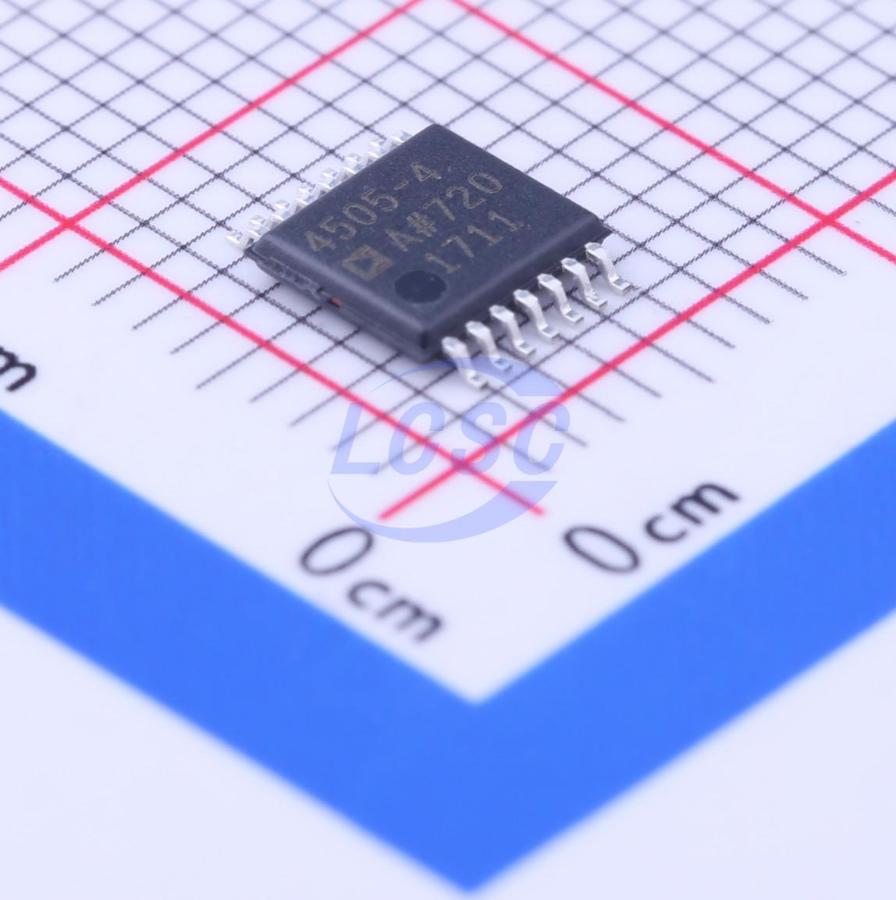

- package
- TSSOP-14
- Quiescent Current
- 7uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8 to 5V
- Max Supply Voltage보강
- 5.5V
- Number Of Circuits보강
- 4
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- Slew Rate보강
- 6mV/µs
- Voltage Gain보강
- 120dB
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead TSSOP (RU-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V+ | power in | None |
| 4 | OUT B | output | None |
| 5 | -IN B | input | None |
| 6 | +IN B | input | None |
| 7 | OUT A | output | None |
| 8 | -IN D | input | None |
| 9 | +IN D | input | None |
| 10 | V- | power in | None |
| 11 | OUT C | output | None |
| 12 | -IN C | input | None |
| 13 | +IN C | input | None |
| 14 | OUT D | output | None |
절대 최대 정격
| Supply Voltage | 5.5V | |
| Input Voltage | ±VSY ± 0.1V | |
| Input Current | 10mA | |
| Differential Input Voltage | ±VSYV | |
| Storage Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 1.8 to 5V | single-supply |
| Supply Voltage | 0.9 to 2.5V | dual-supply (±) |
| Operating Temperature Range | -40 to +125°C |
열 특성
- unit
- °C/W
- theta ja
- 112
- theta jc
- 35
