주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr보강
- 130dB
- features
- -
- Gain Bandwidth Product검증
- 3.5MHz
- Ib Input Bias Current
- 1nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage보강
- 60µV
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 25mA
- Quiescent Current
- 500uA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- -
- Slew Rate
- 1.5V/us
- Dual Supply
- -18V~-2.5V;2.5V~18V
- Input Bias Current보강
- 0.3
- Max Supply Voltage보강
- 36V
- Noise Density E N
- 8nV/√Hz@1kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

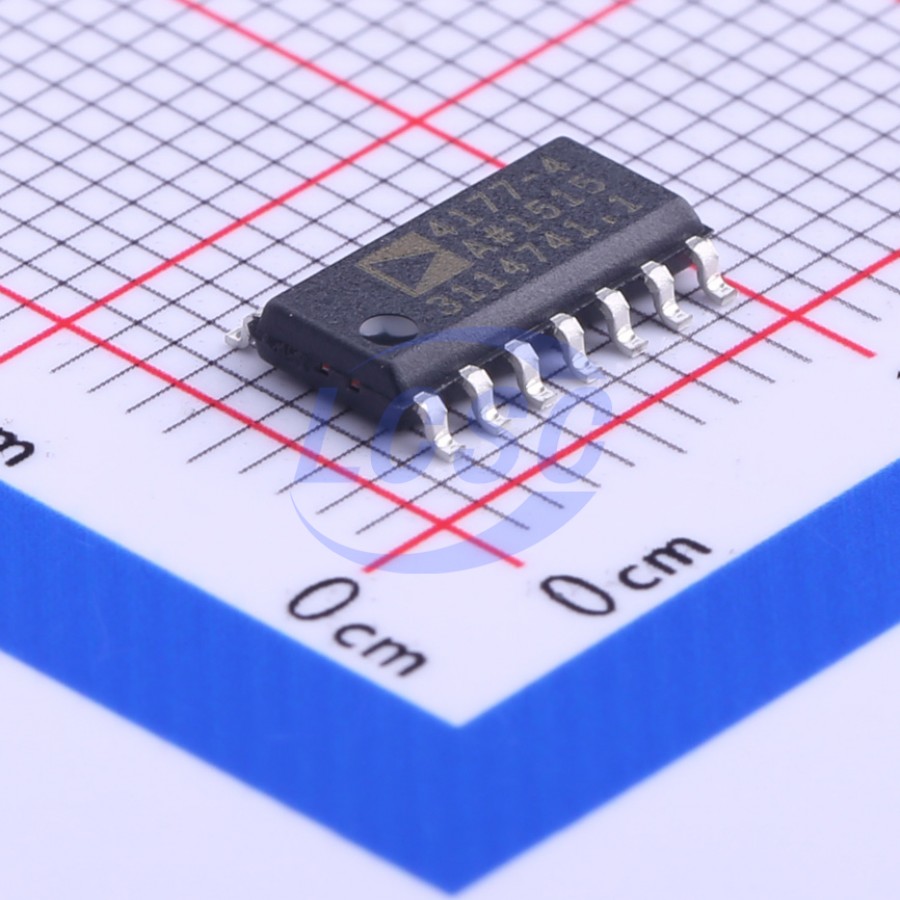

- package
- SOIC-14
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)절대 최대 정격
| Supply Voltage | 36V | |
| Input Voltage | 32V | VSY ± |
| Differential Input Voltage | 32V | ±VSY |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 115
- theta jc
- 36
등급 · 신뢰성
- esd hbm
- 4
- esd ficdm
- 1250 V
오더링 코드
- R7
- 7-inch reel
- RL
- Large reel
