수집 데이터Op Amps

Analog Devices

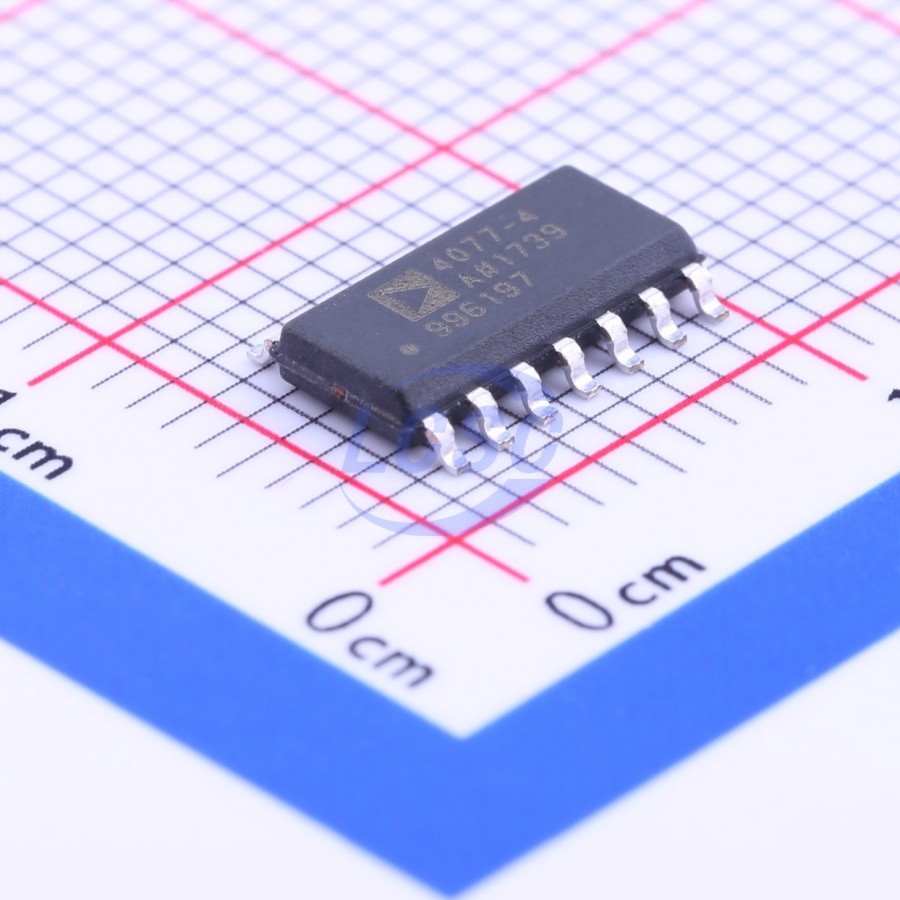

ADA4077-4ARZ

op amp

PDF 데이터시트제조사 웹사이트

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(24)

Common Mode Rejection Ratio Cmrr: 120dB
Dual Supply: -15V~-5V;5V~15V
Gain Bandwidth Product검증: 3.9MHz
Ib Input Bias Current: 1nA
Input Offset Current Drift Ios Tc: -
Input Offset Current Ios: 1.5nA
Input Offset Voltage Drift Vos Tc: 750nV/℃
Maximum Power Supply Range Vdd Vss: 36V
Noise Density E N: 6.9nV/√Hz@1kHz
Number Of Channels검증: 4
Operating Temperature: -40℃~+125℃
Output Current검증: 10mA
Quiescent Current: 400uA
Rail To Rail: -
Slew Rate: 1.2V/us
Vos Input Offset Voltage: 50uV
Common Mode Rejection Ratio보강: 120dB
Input Bias Current보강: 1
Input Offset Voltage Vos보강: 50μV
Max Supply Voltage보강: 36V
Operating Temperature Max보강: 125°C
Operating Temperature Min보강: -40°C
package: SOIC-14
Voltage Gain보강: 130dB

데이터시트 추출 정보

데이터시트에서 직접 추출한 사실 (출처 명시)

핀 배치 · 14-Lead SOIC · 14 핀

#	Name	Type	Function
1	-IN A	input	Inverting Input Channel A
2	+IN A	input	Noninverting Input Channel A
3	V+	power in	Positive Supply Voltage
4	OUT B	output	Output Channel B
5	-IN B	input	Inverting Input Channel B
6	+IN B	input	Noninverting Input Channel B
7	OUT A	output	Output Channel A
8	-IN D	input	Inverting Input Channel D
9	+IN D	input	Noninverting Input Channel D
10	V-	power in	Negative Supply Voltage
11	OUT C	output	Output Channel C
12	-IN C	input	Inverting Input Channel C
13	+IN C	input	Noninverting Input Channel C
14	OUT D	output	Output Channel D

절대 최대 정격

Supply Voltage	36V
Input Voltage	±VSYV
Input Current	10mA
Differential Input Voltage	±VSYV
Storage Temperature Range	-65 to +150°C
Operating Temperature Range	-40 to +125°C
Junction Temperature Range	-65 to +150°C

권장 동작 조건

Supply Voltage	±2.5 to ±15V
Operating Temperature Range	-40 to +125°C

열 특성

theta ja: 115
theta jc: 36

등급 · 신뢰성

esd cdm: 1.25
esd hbm: 6

오더링 코드

ARZ: 14-Lead SOIC_N
ARZ-R7: 14-Lead SOIC_N, 7-inch reel
ARZ-RL: 14-Lead SOIC_N, large reel
