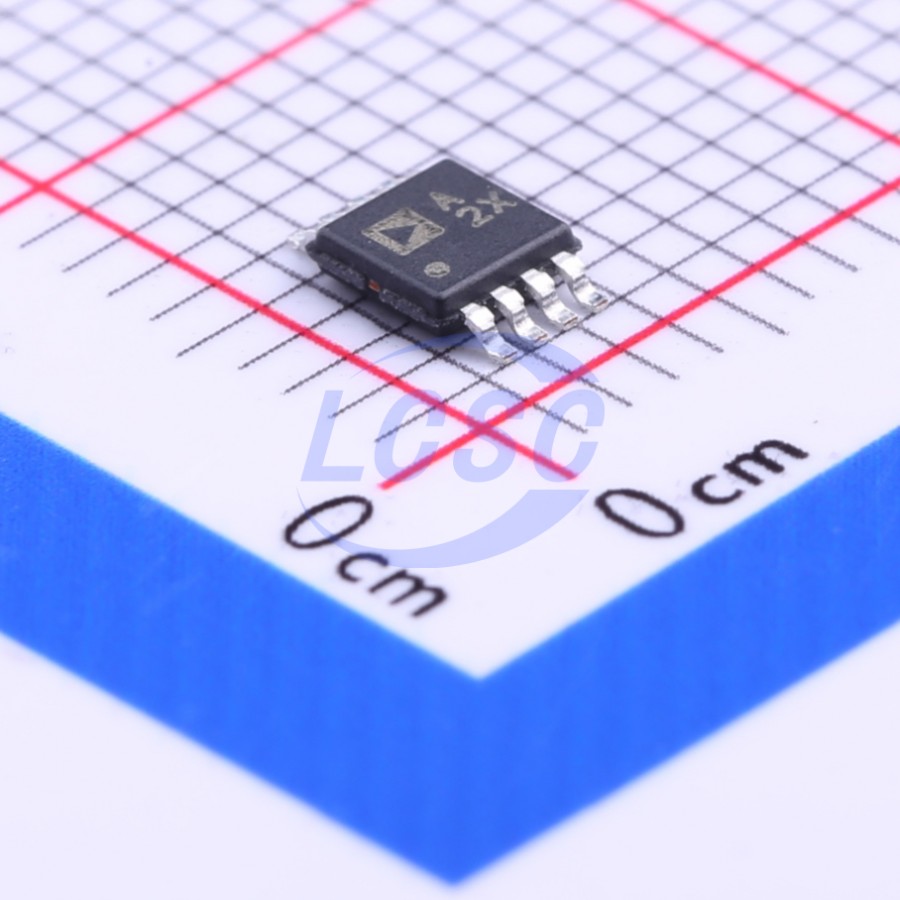

주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr보강
- 140dB
- Dual Supply
- -15V~-5V;5V~15V
- Gain Bandwidth Product검증
- 3.9MHz
- Ib Input Bias Current
- 400pA
- Input Bias Current보강
- 0.4
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 250nV/℃
- Vos Input Offset Voltage보강
- 50µV
- Max Supply Voltage보강
- 36V
- Noise Density E N
- 6.9nV/√Hz@1kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 10mA
- package
- MSOP-8
- Quiescent Current
- 400uA
- Slew Rate
- 1.2V/us
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | Output Channel A |
| 2 | -IN A | input | Inverting Input Channel A |
| 3 | +IN A | input | Noninverting Input Channel A |
| 4 | V- | power in | Negative Supply Voltage |
| 5 | +IN B | input | Noninverting Input Channel B |
| 6 | -IN B | input | Inverting Input Channel B |
| 7 | OUT B | output | Output Channel B |
| 8 | V+ | power in | Positive Supply Voltage |
절대 최대 정격
| Supply Voltage | 36V | |
| Input Voltage | ±VSYV | |
| Input Current | 10mA | |
| Differential Input Voltage | ±VSYV | |
| Storage Temperature Range | -65 to +150°C |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- unit
- °C/W
- theta ja
- 190
- theta jc
- 44
등급 · 신뢰성
- esd cdm
- 1.25
- esd hbm
- 6
- esd cdm unit
- kV
- esd hbm unit
- kV
오더링 코드
- ARMZ
- 8-Lead MSOP
- ARZ
- 8-Lead SOIC_N
