주요 스펙 요약(19)
- Common Mode Rejection Ratio Cmrr
- 113dB
- Dual Supply
- -15V~-5V;5V~15V
- features
- -
- Gain Bandwidth Product검증
- 12MHz
- Ib Input Bias Current
- 90nA
- Input Bias Current보강
- 90
- Input Offset Current Ios
- 100nA
- Input Offset Voltage Drift Vos Tc
- 700nV/℃
- Vos Input Offset Voltage보강
- 40μV
- Noise Density E N
- 1.8nV/√Hz@1kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 10mA

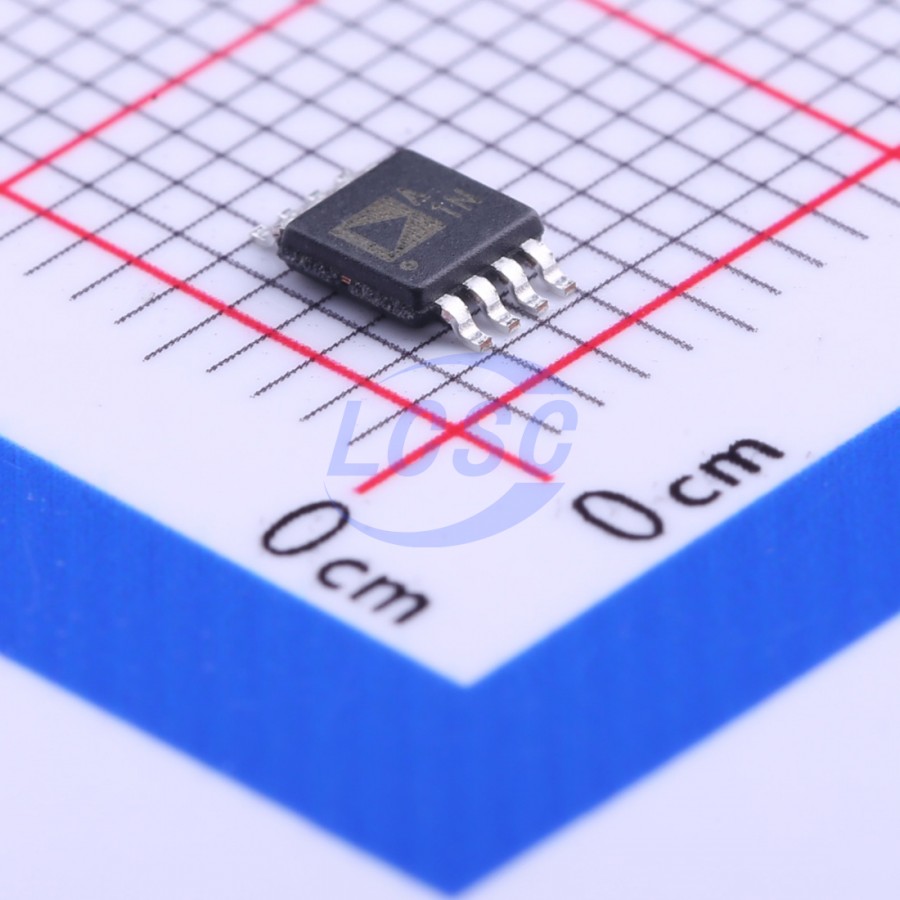

- package
- MSOP-8
- Quiescent Current
- 2.2mA
- Slew Rate
- 2.7V/us
- Max Supply Voltage보강
- 36V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-pin MSOP (RM-8) or 8-pin SOIC (R-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | |
| 2 | –IN A | input | |
| 3 | +IN A | input | |
| 4 | V– | power in | |
| 5 | NC | no connect | |
| 6 | +IN B | input | |
| 7 | –IN B | input | |
| 8 | V+ | power in |
절대 최대 정격
| Supply Voltage | 36V | +36 V |
| Supply Voltage | 18V | ±18 V |
| Input Voltage | V− < VIN < V+ | |
| Differential Input Voltage | ±V supply | |
| Differential Input Current | 5mA | ± |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Junction Temperature Range | -65 to +150°C | |
| Pin Temperature | 300°C | 60s solder |
권장 동작 조건
| Supply Voltage | 5 to 15V | ±5 V to ±15 V |
열 특성
- unit
- °C/W
- theta ja
- 155
- theta jc
- 45
