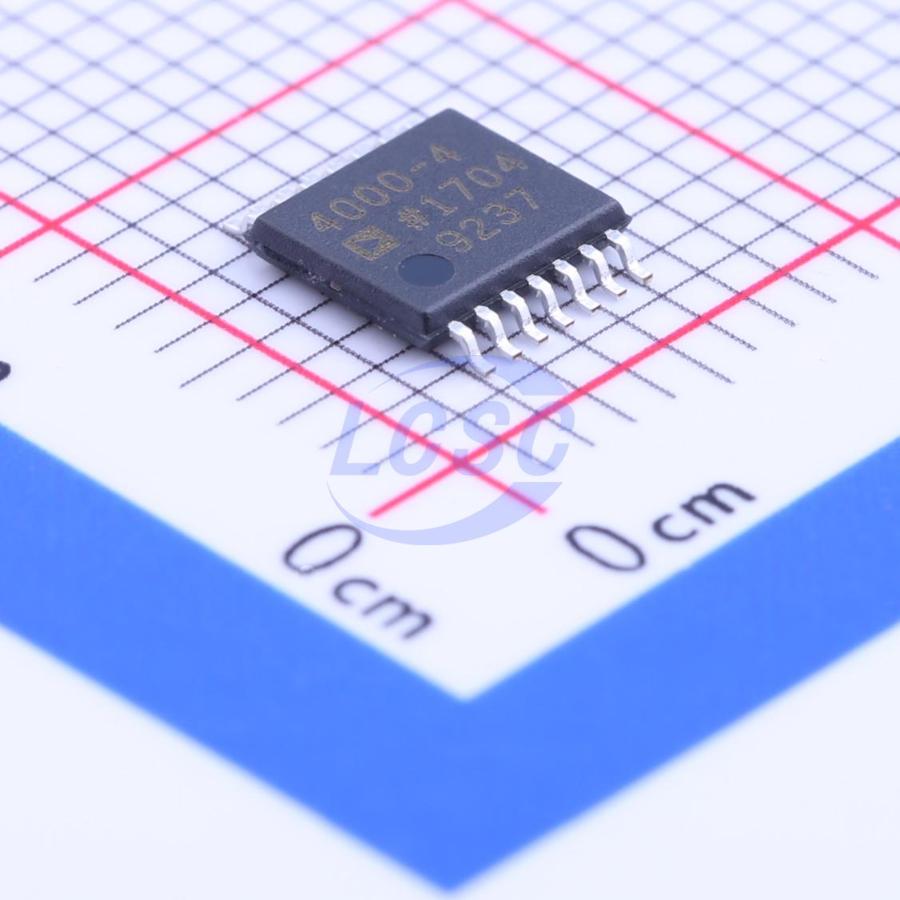

주요 스펙 요약(16)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Gain Bandwidth Product검증
- 5MHz
- Ib Input Bias Current
- 5pA
- Input Bias Current보강
- 40pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Vos Input Offset Voltage보강
- 1.70mV
- Max Supply Voltage보강
- 18V
- Number Of Channels검토
- Four channels데이터시트: 4 (p.1)
- Operating Temperature
- -
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- Output Current검증
- -
- package
- TSSOP-14
- Quiescent Current
- 1.65mA
- Rail To Rail
- -
- Slew Rate검증
- 20V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead TSSOP (RU-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | +V | power in | None |
| 4 | OUT B | output | None |
| 5 | -IN B | input | None |
| 6 | +IN B | input | None |
| 7 | OUT A | output | None |
| 8 | -IN D | input | None |
| 9 | +IN D | input | None |
| 10 | -V | power in | None |
| 11 | +IN B | input | None |
| 12 | -IN C | input | None |
| 13 | +IN C | input | None |
| 14 | OUT D | output | None |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage | V supplyV | ± |
| Differential Input Voltage | V supplyV | ± |
| Output Short-Circuit Duration to GND | Indefinite | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Junction Temperature Range | -65 to +150°C | |
| Lead Temperature (Soldering, 10 sec) | 300°C |
권장 동작 조건
| Supply Voltage | 4.0 to 18.0V | ± |
열 특성
- unit
- °C/W
- theta ja
- 114
- theta jc
- 23.3
