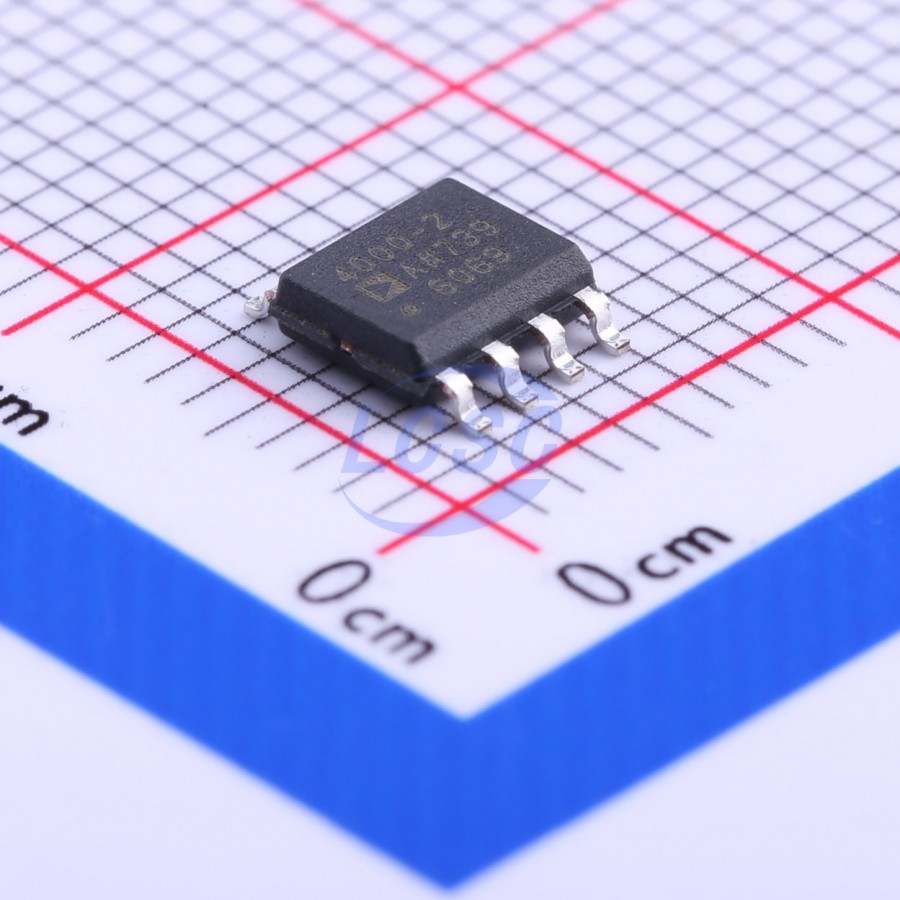

주요 스펙 요약(17)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Gain Bandwidth Product검증
- 5MHz
- Ib Input Bias Current
- 5pA
- Input Bias Current보강
- 40pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Vos Input Offset Voltage보강
- 1.70mV
- Number Of Channels검증
- -
- Number Of Circuits보강
- 2
- Operating Temperature
- -
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- Output Current검증
- -
- package
- SOIC-8
- Quiescent Current
- 1.65mA
- Rail To Rail
- -
- Slew Rate검증
- 20V/us
- Max Supply Voltage보강
- 18V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC (R-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | –IN A | input | None |
| 2 | +IN A | input | None |
| 3 | –V | power in | None |
| 4 | +V | power in | None |
| 5 | +IN B | input | None |
| 6 | –IN B | input | None |
| 7 | OUT B | output | None |
| 8 | OUT A | output | None |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage | 18V | ±V supply |
| Differential Input Voltage | 18V | ±V supply |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C |
권장 동작 조건
| Supply Voltage | 4V | ±4.0 V to ±18.0 V |
열 특성
- unit
- °C/W
- theta ja
- 112.38
- theta jc
- 61.6
