주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Dual Supply
- -18V~-4V;4V~18V
- Gain Bandwidth Product검증
- 5MHz
- Ib Input Bias Current
- 5pA
- Input Bias Current보강
- 40pA
- Input Offset Current Ios
- 40pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Vos Input Offset Voltage보강
- 1.70mV
- Maximum Power Supply Range Vdd Vss
- 36V
- Noise Density E N
- 16nV/√Hz@1kHz
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 28mA
- package

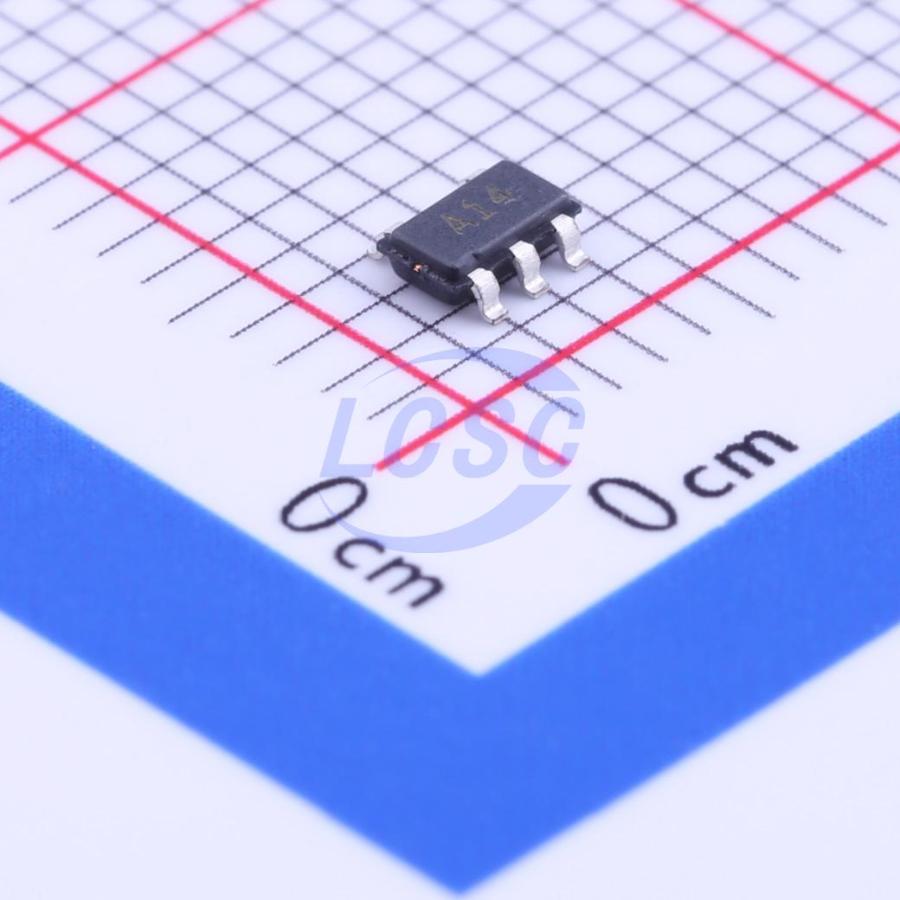

- TSOT-23-5
- Quiescent Current
- 1.65mA
- Slew Rate검증
- 20V/us
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 5-Lead TSOT (UJ-5) · 4 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT | output | Output |
| 2 | V- | power in | Negative Supply |
| 4 | -IN | input | Inverting Input |
| 5 | V+ | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage | 18V | ±V supply |
| Differential Input Voltage | 18V | ±V supply |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Junction Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 4V | ± |
| Supply Voltage | 18V | ± |
열 특성
- theta ja
- 172.92
- theta jc
- 61.76
오더링 코드
- R7
- Tape and Reel
