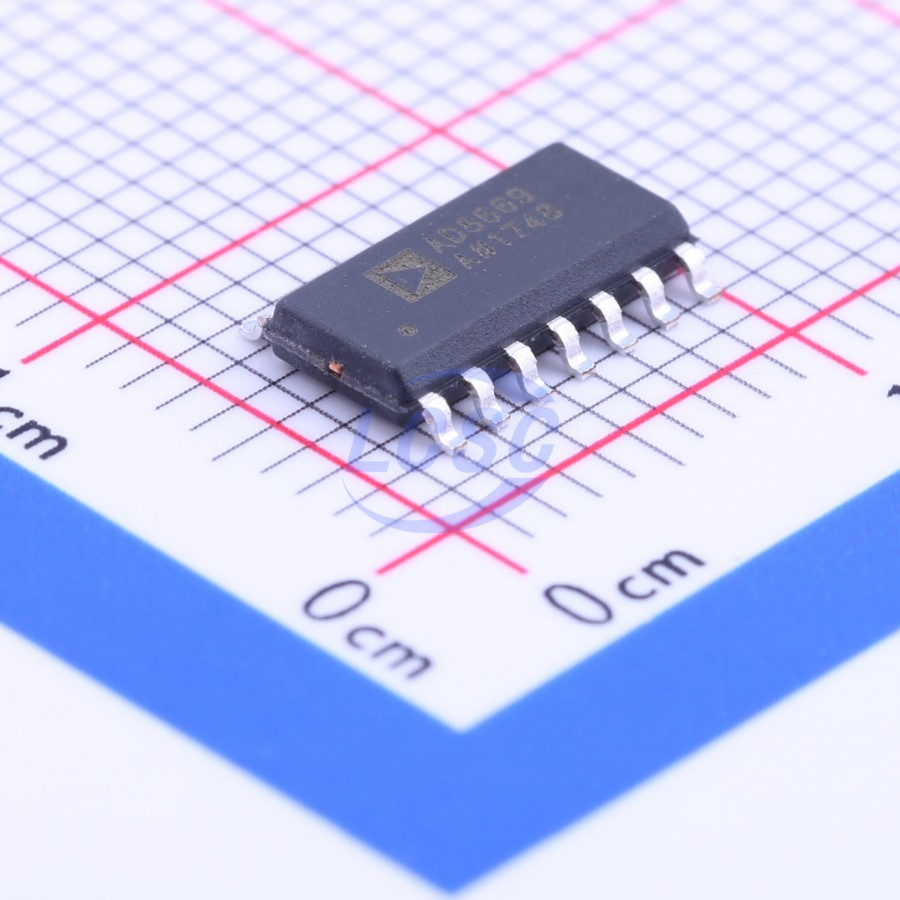

주요 스펙 요약(24)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Dual Supply
- -8V~-2.5V;2.5V~8V
- Gain Bandwidth Product검증
- 520kHz
- Ib Input Bias Current
- 0.3pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 35pA
- Input Offset Voltage Drift Vos Tc
- 1.5uV/℃
- Vos Input Offset Voltage보강
- 175µV
- Maximum Power Supply Range Vdd Vss
- 16V
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 7mA
- Quiescent Current
- 210uA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply검증
- 5 to 16V
- Slew Rate검증
- 260V/ms
- Input Bias Current보강
- 300fA
- Max Supply Voltage보강
- 16V
- Noise Density E N
- 23nV/√Hz@1kHz
- Number Of Circuits보강
- 4
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-14
- Voltage Gain보강
- 140dB
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC_N (R-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | –IN A | input | |
| 2 | +IN A | input | |
| 3 | V+ | power in | |
| 4 | OUT D | output | |
| 5 | +IN C | input | |
| 6 | –IN C | input | |
| 7 | OUT C | output | |
| 8 | OUT B | output | |
| 9 | –IN B | input | |
| 10 | +IN B | input | |
| 11 | V– | power in | |
| 12 | +IN D | input | |
| 13 | –IN D | input | |
| 14 | OUT A | output |
절대 최대 정격
| Supply Voltage | 18V | |
| Input Voltage | -0.1 to VSYV | |
| Differential Input Voltage | 18V |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 90
- theta jc
- 45
오더링 코드
- ARZ
- RoHS Compliant
- REEL
- Tape and Reel
- REEL7
- 7-inch Tape and Reel
