주요 스펙 요약(19)
- Common Mode Rejection Ratio Cmrr
- 100dB
- features
- -
- Gain Bandwidth Product
- 4MHz
- Ib Input Bias Current
- 0.2pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 0.5pA
- Input Offset Voltage Drift Vos Tc
- 3uV/℃
- Vos Input Offset Voltage
- 2.5mV
- Maximum Power Supply Range Vdd Vss
- 16V
- Number Of Channels
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 19mA
- Quiescent Current
- 1.1mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 5 to 16V
- Slew Rate
- 3.5V/us
- Dual Supply
- -8V~-2.5V;2.5V~8V
- Noise Density E N
- 8nV/√Hz@10kHz
- package
- SOIC-14
데이터시트 추출 정보

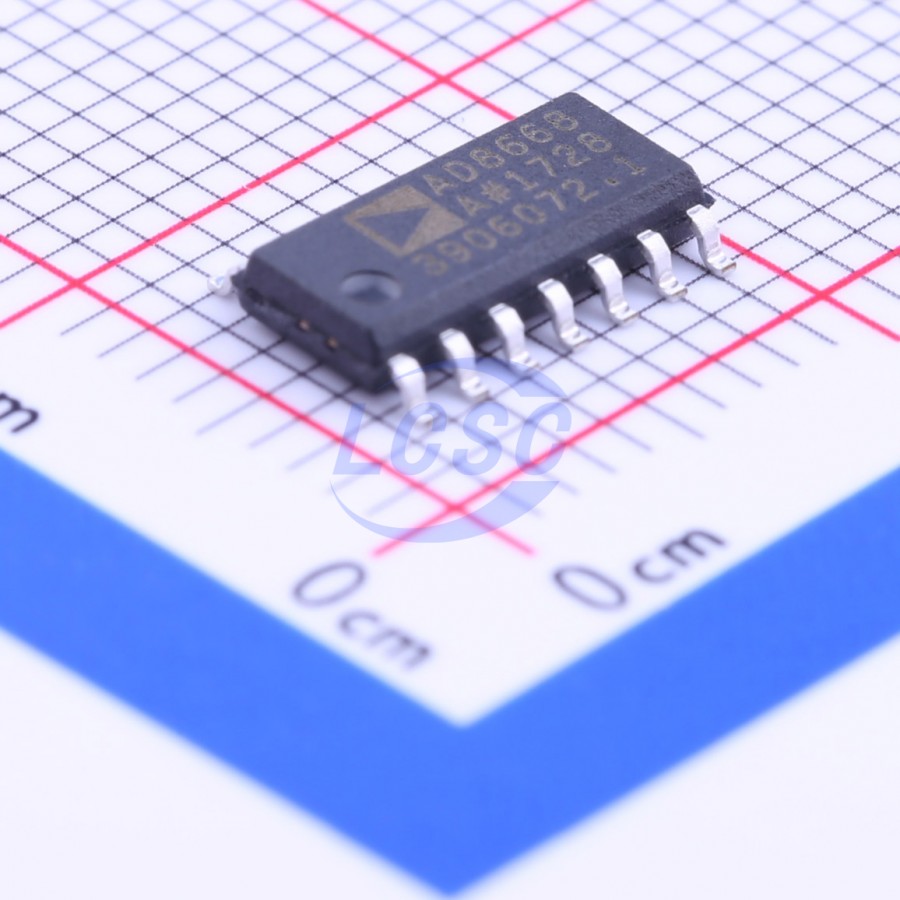

데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead SOIC_N (R-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | None |
| 2 | -IN A | input | None |
| 3 | +IN A | input | None |
| 4 | V+ | power in | None |
| 5 | +IN B | input | None |
| 6 | -IN B | input | None |
| 7 | OUT B | output | None |
| 8 | V- | power in | None |
| 9 | +IN D | input | None |
| 10 | -IN D | input | None |
| 11 | OUT D | output | None |
| 12 | +IN C | input | None |
| 13 | -IN C | input | None |
| 14 | OUT C | output | None |
절대 최대 정격
| Supply Voltage | 18V | GND to VDD |
| Input Voltage | 18V | Differential Input Voltage |
| Output Short-Circuit to GND | Indefinite | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Lead Temperature (Soldering, 60 sec) | 300°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Single-supply operation | 5 to 16V | |
| Dual-supply operation | 2.5 to 8V | ± |
열 특성
- theta ja
- 120
- theta jc
- 36
오더링 코드
- Z
- RoHS Compliant Model
- W
- Qualified for Automotive Applications
