주요 스펙 요약(24)
- Common Mode Rejection Ratio Cmrr
- 100dB
- Gain Bandwidth Product검증
- 4MHz
- Ib Input Bias Current
- 0.3pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- -
- Input Offset Voltage Drift Vos Tc
- 3uV/℃
- Maximum Power Supply Range Vdd Vss
- 16V
- Noise Density E N
- 12nV/√Hz@1kHz
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- -
- Quiescent Current
- 1.15mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply검증
- 5 to 16V
- Slew Rate검증
- 3.5V/us
- Vos Input Offset Voltage
- 1.2mV
- Common Mode Rejection Ratio보강
- 100dB
- Input Bias Current보강
- 1pA
- Input Offset Voltage Vos보강
- 1200μV
- Max Supply Voltage보강
- 16V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

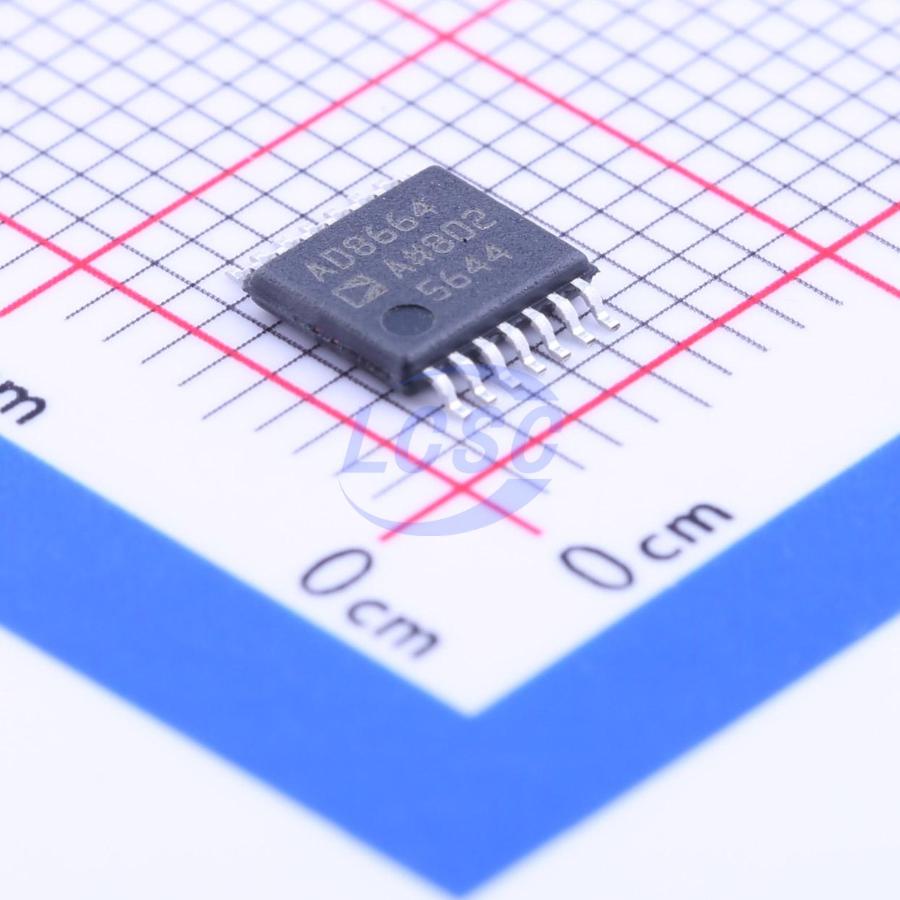

- package
- TSSOP-14
- Voltage Gain보강
- 360V/mV
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead TSSOP · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | None |
| 2 | -IN A | input | None |
| 3 | +IN A | input | None |
| 4 | V+ | power in | None |
| 5 | +IN B | input | None |
| 6 | -IN B | input | None |
| 7 | OUT B | output | None |
| 8 | +IN C | input | None |
| 9 | -IN C | input | None |
| 10 | OUT C | output | None |
| 11 | +IN D | input | None |
| 12 | -IN D | input | None |
| 13 | OUT D | output | None |
| 14 | V- | power in | None |
절대 최대 정격
| Supply Voltage | 18V | |
| Input Voltage | -0.1 to VSV | |
| Differential Input Voltage | 18V |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C | RU-14 |
열 특성
- theta ja
- 114
- theta jc
- 23.3
오더링 코드
- RU-14
- 14-Lead TSSOP
