주요 스펙 요약(19)
- Common Mode Rejection Ratio Cmrr
- 100dB
- features
- Built-in compensation;ESD protection;Reverse-phase input protection
- Gain Bandwidth Product검증
- 28MHz
- Ib Input Bias Current
- 10pA
- Input Offset Current Ios
- 10pA
- Input Offset Voltage Drift Vos Tc
- 400nV/℃
- Vos Input Offset Voltage
- 50uV
- Max Supply Voltage보강
- 5.5V
- Noise Density E N
- 2.7nV/√Hz@10kHz
- Operating Temperature
- -40℃~+125℃
- Output Current
- 220mA

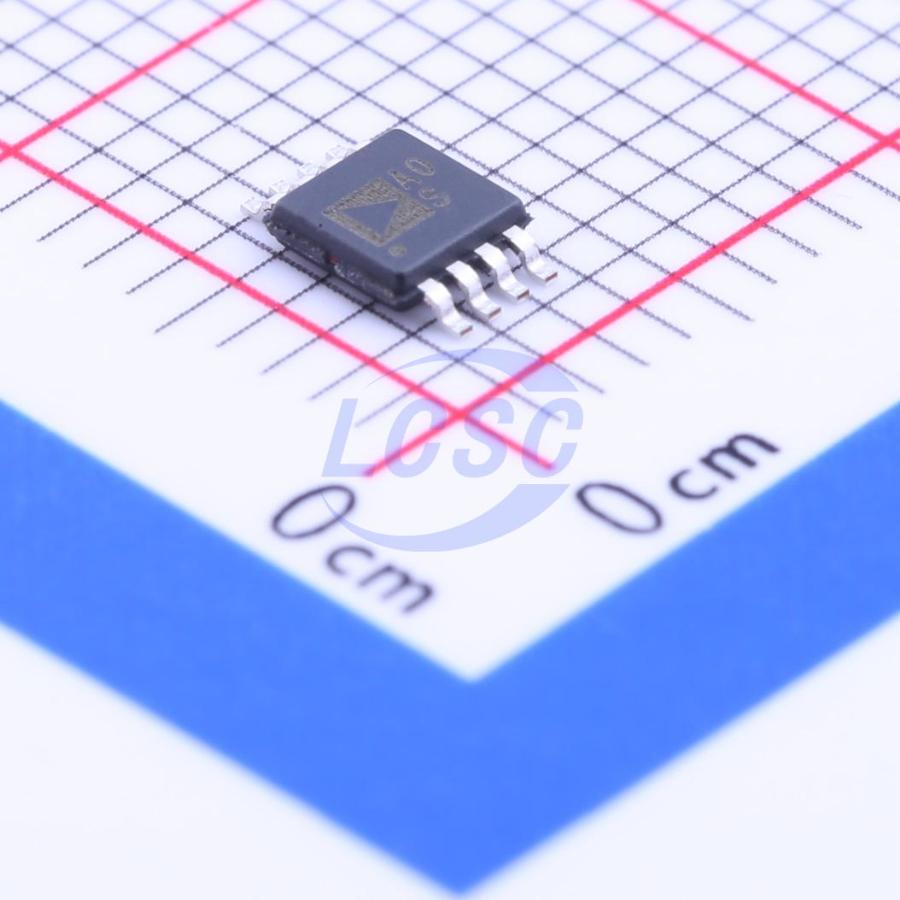

- package
- MSOP-8
- Quiescent Current
- 4.5mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5.5V
- Slew Rate
- 11V/us
- Number Of Channels보강
- 2
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · MSOP (RM-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V- | power in | None |
| 4 | V+ | power in | None |
| 5 | OUT B | output | None |
| 6 | +IN B | input | None |
| 7 | -IN B | input | None |
| 8 | OUT A | output | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | VSS - 0.3 to VDD + 0.3V | |
| Differential Input Voltage | 6V | |
| ESD (HBM) | 3kV | |
| Storage Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 2.7 to 5.5V | |
| Operating Temperature | -40 to +125°C |
열 특성
- theta ja
- 210
- theta jc
- 45
등급 · 신뢰성
- aec q
- AD8656W is AEC-Q qualified
- esd hbm
- 3 kV
오더링 코드
- REEL
- Tape and Reel
- Z
- RoHS compliant
- W
- Automotive qualified
