주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr보강
- 95dB
- features
- -
- Gain Bandwidth Product검증
- 50MHz
- Ib Input Bias Current
- 1pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 10pA
- Input Offset Voltage Drift Vos Tc
- 400nV/℃
- Vos Input Offset Voltage보강
- 90μV
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 80mA
- Quiescent Current
- 17.5mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5.5V
- Slew Rate검증
- 41V/us
- Dual Supply
- -
- Input Bias Current보강
- 1pA
- Max Supply Voltage보강
- 6.0V
- Noise Density E N
- 4.5nV/√Hz@100kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

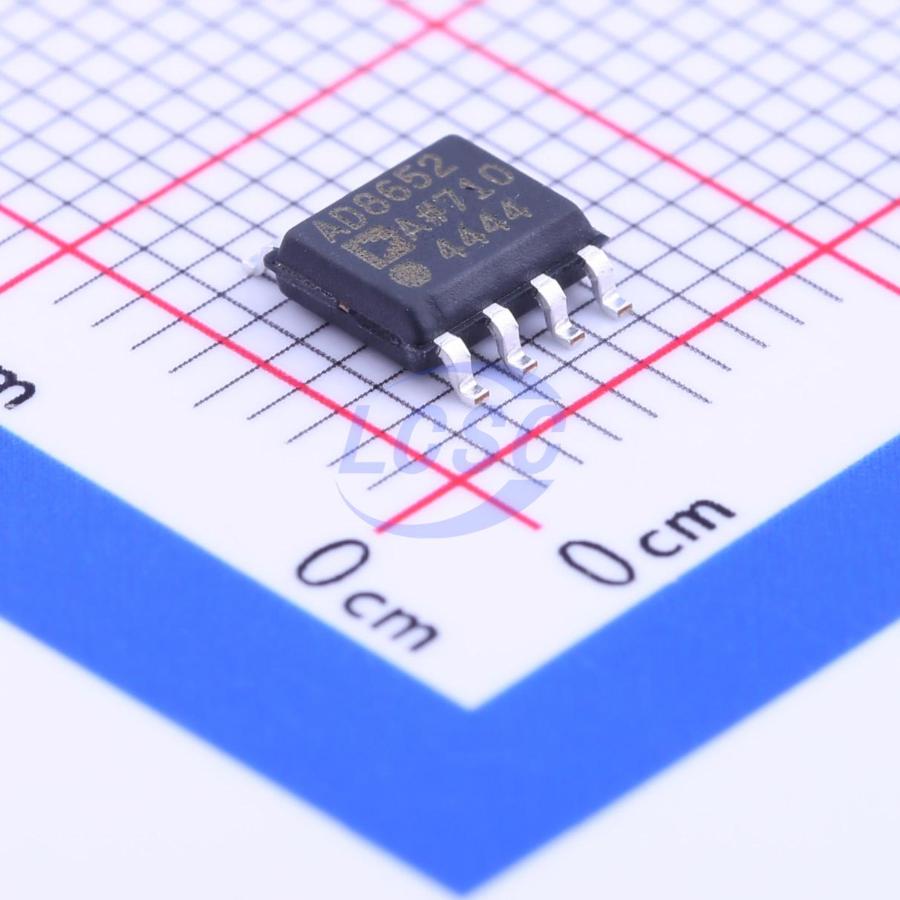

- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC_N (R-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | Output A |
| 2 | -IN A | input | Inverting Input A |
| 3 | +IN A | input | Non-inverting Input A |
| 4 | V- | power in | Negative Supply |
| 5 | +IN B | input | Non-inverting Input B |
| 6 | -IN B | input | Inverting Input B |
| 7 | OUT B | output | Output B |
| 8 | V+ | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 6.0V | |
| Input Voltage | 0.3V | GND to VS + 0.3 V |
| Differential Input Voltage | 6.0V | ± |
권장 동작 조건
| Supply Voltage | 2.7 to 5.5V | |
| Operating Temperature Range | -40 to 125°C |
열 특성
- unit
- °C/W
- theta ja
- 158
- theta jc
- 43
등급 · 신뢰성
- esd hbm
- 4000
오더링 코드
- REEL7
- 8-Lead SOIC_N, R-8 package
