주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr보강
- 93dB
- Dual Supply
- -13V~-2.5V;2.5V~13V
- Gain Bandwidth Product검증
- 3.5MHz
- Ib Input Bias Current
- 0.25pA
- Input Offset Voltage Drift Vos Tc
- 2.5uV/℃
- Vos Input Offset Voltage보강
- 750µV
- Maximum Power Supply Range Vdd Vss
- 26V
- Noise Density E N
- 28.5nV/√Hz@1kHz
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 6mA

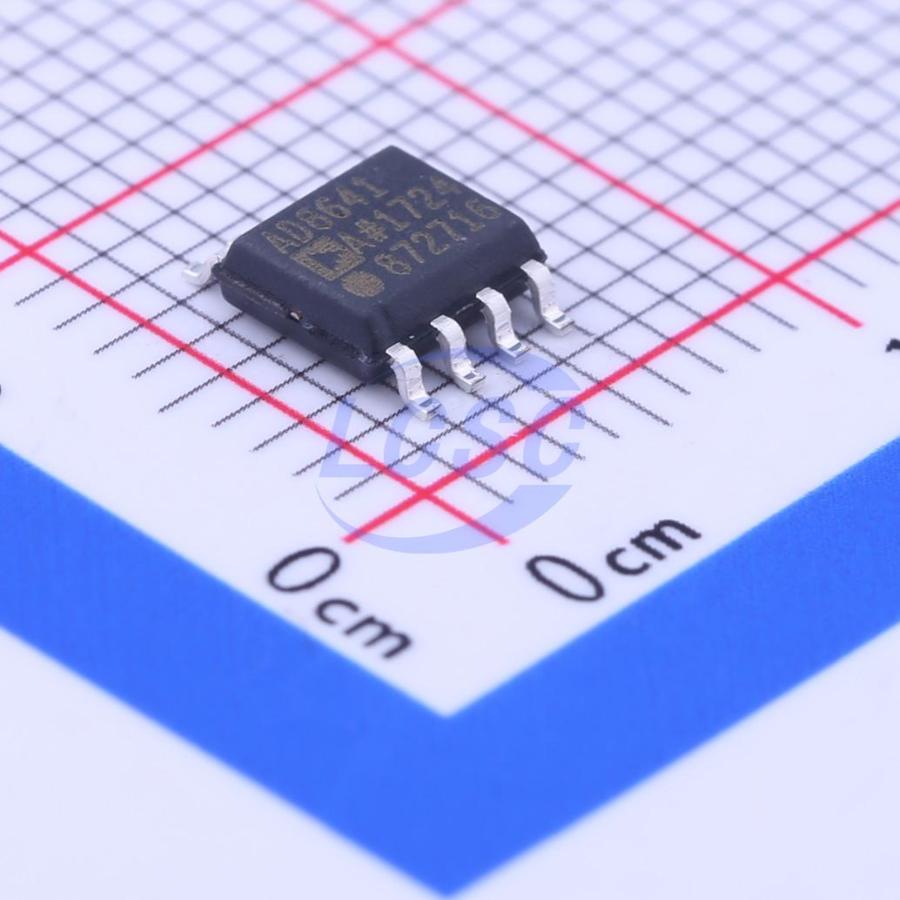

- package
- SOIC-8
- Quiescent Current
- 195uA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply검증
- 5 to 26V
- Slew Rate
- 3V/us
- Input Bias Current보강
- 1pA
- Max Supply Voltage보강
- 27.3V
- Number Of Circuits보강
- 1
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- Voltage Gain보강
- 140V/mV
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC (R-8) · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT | output | |
| 2 | -IN | input | |
| 3 | +IN | input | |
| 4 | V- | power in | |
| 8 | V+ | power in |
절대 최대 정격
| Supply Voltage | 27.3V | |
| Input Voltage | ±Supply VoltageV |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 121
- theta jc
- 43
오더링 코드
- -REEL7
- 7-inch reel
