주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr보강
- 133dB
- Dual Supply
- -8V~-2.5V;2.5V~8V
- Gain Bandwidth Product
- 1.5MHz
- Ib Input Bias Current
- 40pA
- Input Offset Current Ios
- 150pA
- Input Offset Voltage Drift Vos Tc
- 60nV/℃
- Vos Input Offset Voltage보강
- 9μV
- Noise Density E N
- 60nV/√Hz@1kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 19mA

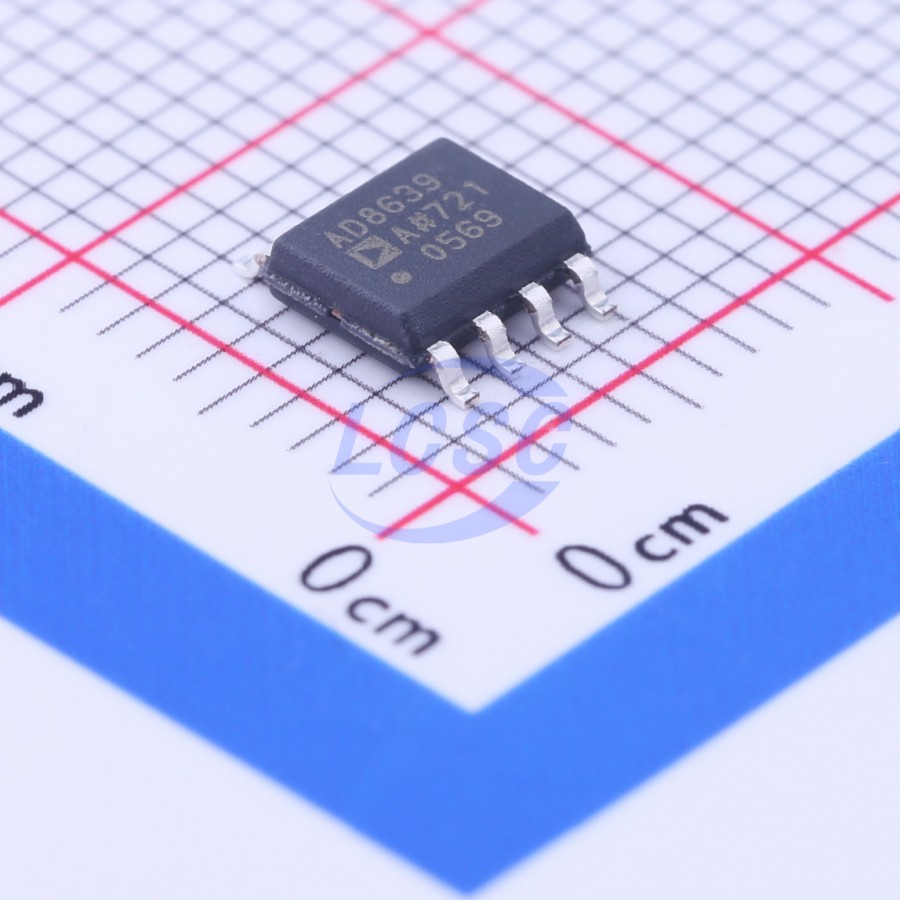

- package
- SOIC-8
- Quiescent Current
- 1.7mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 5 to 16V
- Slew Rate
- 2V/us
- Input Bias Current보강
- 40pA
- Max Supply Voltage보강
- 16V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP_WD (CP-8-5) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V- | power in | None |
| 4 | V+ | power in | None |
| 5 | +IN B | input | None |
| 6 | -IN B | input | None |
| 7 | OUT B | output | None |
| 8 | OUT A | output | None |
절대 최대 정격
| Supply Voltage | 16V | |
| Input Voltage | -0.3 to VSY+ + 0.3V | |
| Input Current | 10mA | |
| Differential Input Voltage | VSYV | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Junction Temperature Range | -65 to +150°C | |
| Pin Temperature (Soldering, 60s) | 300°C |
권장 동작 조건
| Supply Voltage | 5 to 16V | Single Supply |
| Supply Voltage | 2.5 to 8V | Dual Supply (±) |
열 특성
- theta ja
- 18
등급 · 신뢰성
- aec q
- Yes
