주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 130dB
- Dual Supply
- -2.5V~-1.35V;1.35V~2.5V
- Gain Bandwidth Product
- 2.5MHz
- Ib Input Bias Current
- 100pA
- Input Offset Current Ios
- 200pA
- Input Offset Voltage Drift Vos Tc
- 2nV/℃
- Noise Density E N
- 22nV/√Hz@1kHz
- Number Of Channels검토
- Four channels데이터시트: 4 (p.1)
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA

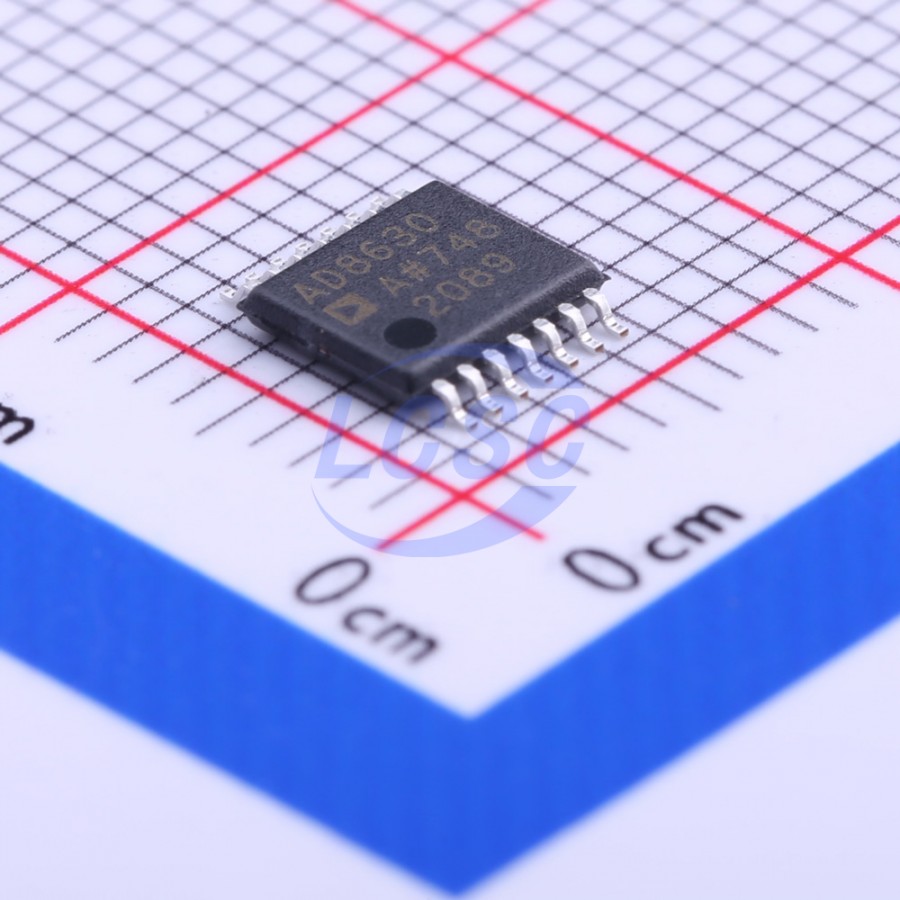

- package
- TSSOP-14
- Quiescent Current
- 1mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5V
- Slew Rate
- 1V/us
- Vos Input Offset Voltage
- 1uV
- Common Mode Rejection Ratio보강
- 130dB
- Input Bias Current보강
- 100pA
- Input Offset Voltage Vos보강
- 1μV
- Max Supply Voltage보강
- 6V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-lead SOIC/TSSOP · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V+ | power in | None |
| 4 | OUT D | output | None |
| 5 | +IN C | input | None |
| 6 | -IN C | input | None |
| 7 | OUT C | output | None |
| 8 | OUT A | output | None |
| 9 | OUT B | output | None |
| 10 | -IN B | input | None |
| 11 | +IN B | input | None |
| 12 | V- | power in | None |
| 13 | +IN D | input | None |
| 14 | -IN D | input | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | ±5.0V | relative to GND |
| Differential Input Voltage | ±5V | |
| Storage Temperature | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 2.7 to 5V | |
| Operating Temperature | -40 to +125°C |
열 특성
- note
- Values for 14-lead TSSOP (RU-14)
- theta ja
- 148
- theta jc
- 23
등급 · 신뢰성
- esd cdm
- 1500
- esd hbm
- 5000
- esd cdm unit
- V
- esd hbm unit
- V
오더링 코드
- RU-14
- 14-lead TSSOP
- R-14
- 14-lead SOIC_N
