주요 스펙 요약(20)
- Common Mode Rejection Ratio Cmrr
- 83dB
- Gain Bandwidth Product검증
- 8.2MHz
- Ib Input Bias Current
- 60pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 1nA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Vos Input Offset Voltage보강
- 500μV
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Noise Density E N
- 33nV/√Hz@1kHz
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA
- Quiescent Current
- 680uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5.5V
- Slew Rate검증
- 6V/us
- Max Supply Voltage보강
- 6V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

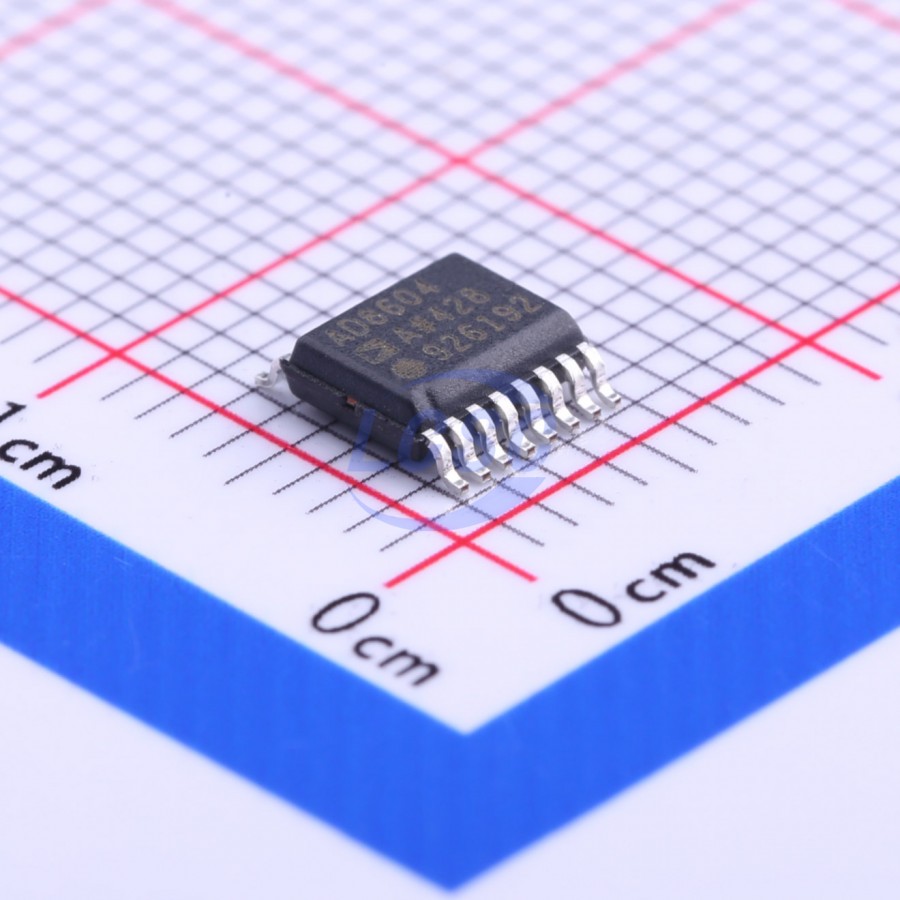

- package
- QSOP-16-150mil
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · QSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V+ | power in | None |
| 4 | OUT B | output | None |
| 5 | -IN B | input | None |
| 6 | +IN B | input | None |
| 7 | OUT A | output | None |
| 8 | -IN D | input | None |
| 9 | +IN D | input | None |
| 10 | V- | power in | None |
| 11 | OUT C | output | None |
| 12 | -IN C | input | None |
| 13 | +IN C | input | None |
| 14 | OUT D | output | None |
| 15 | NC | no connect | None |
| 16 | NC | no connect | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | 6V | GND to VS |
| Differential Input Voltage | 6V | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Junction Temperature Range | -65 to +150°C | |
| Pin Temperature (Soldering, 60s) | 300°C |
권장 동작 조건
| Single Supply Voltage | 2.7 to 5.5V | |
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 115
- theta jc
- 36
등급 · 신뢰성
- aec q
- Yes
- esd hbm
- 2 kV
오더링 코드
- RQ
- 16-lead QSOP
