주요 스펙 요약(21)
- Common Mode Rejection Ratio Cmrr보강
- 45dB
- Gain Bandwidth Product
- 3MHz
- Ib Input Bias Current
- 5pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 25pA
- Input Offset Voltage Drift Vos Tc
- 20uV/℃
- Vos Input Offset Voltage보강
- 25mV
- Maximum Power Supply Range Vdd Vss
- 6V
- Noise Density E N
- 45nV/√Hz@1kHz
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current검증
- 250mA
- Quiescent Current
- 700uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 6V
- Slew Rate
- 5V/us
- Input Bias Current보강
- 50pA
- Max Supply Voltage보강
- 7V
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

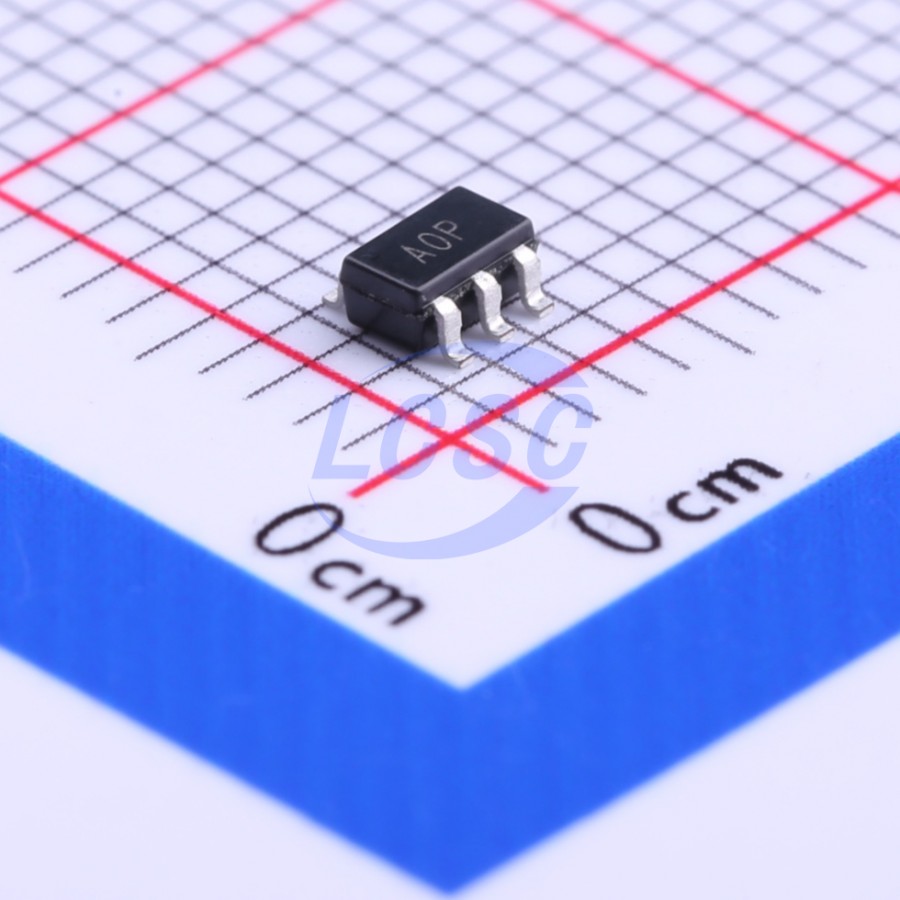

- package
- SOT-23-5
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 5-Lead SOT-23 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V+ | power in | None |
| 4 | OUT A | output | None |
| 5 | V- | power in | None |
절대 최대 정격
| Supply Voltage | 7V | |
| Input Voltage | 6V | GND to VS |
| Differential Input Voltage | 6V | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +85°C | |
| Junction Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 2.7 to 6V |
열 특성
- theta ja
- 230
- theta jc
- 146
오더링 코드
- REEL1
- Tape and Reel
