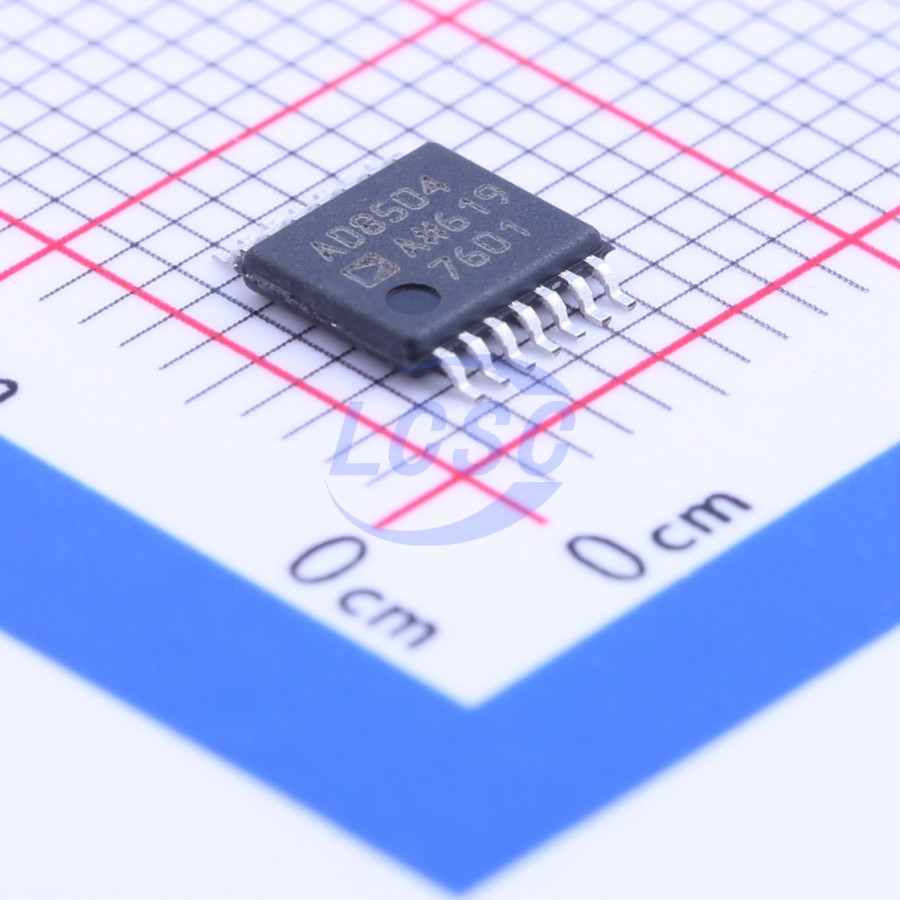

주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr보강
- 76dB
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Gain Bandwidth Product검증
- 7kHz
- Ib Input Bias Current
- 1pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 50pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Vos Input Offset Voltage보강
- 0.5mV
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 5mA
- Quiescent Current
- 750nA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8 to 5.5V
- Slew Rate검증
- 4V/ms
- Input Bias Current보강
- 1pA
- Max Supply Voltage보강
- 6V
- Noise Density E N
- 190nV/√Hz@1kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-14
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead TSSOP (RU-14) · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | –IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V+ | power in | None |
| 4 | OUT A | output | None |
| 5 | –IN B | input | None |
| 6 | +IN B | input | None |
| 7 | OUT B | output | None |
| 8 | –IN D | input | None |
| 9 | +IN D | input | None |
| 10 | V– | power in | None |
| 11 | OUT C | output | None |
| 12 | –IN C | input | None |
| 13 | +IN C | input | None |
| 14 | OUT D | output | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | -0.3 to VDD + 0.3V | |
| Differential Input Voltage | 6V | |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C |
권장 동작 조건
| Single-supply voltage | 1.8 to 5.5V | |
| Dual-supply voltage | 0.9 to 2.75V | ± |
열 특성
- theta ja
- 180
- theta jc
- 35
