주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr
- 105dB
- features
- -
- Gain Bandwidth Product검증
- 175MHz
- Ib Input Bias Current
- 3.3uA
- Input Offset Current Drift Ios Tc
- 50nA/℃
- Input Offset Current Ios
- 7.5uA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Maximum Power Supply Range Vdd Vss
- 30V
- Number Of Channels
- 1
- Operating Temperature
- 0℃~+70℃
- Output Current검증
- 32mA
- Quiescent Current
- 4.8mA
- Rail To Rail
- -
- Single Supply
- 5 to 15V
- Slew Rate
- 300V/us
- Vos Input Offset Voltage
- 1mV
- Common Mode Rejection Ratio보강
- 105dB
- Dual Supply
- -5V~5V;-15V~15V
- Input Bias Current보강
- 6.6µA
- Input Offset Voltage Vos보강
- 1mV
- Max Supply Voltage보강
- 18V
- Noise Density E N
- 5nV/√Hz@10kHz

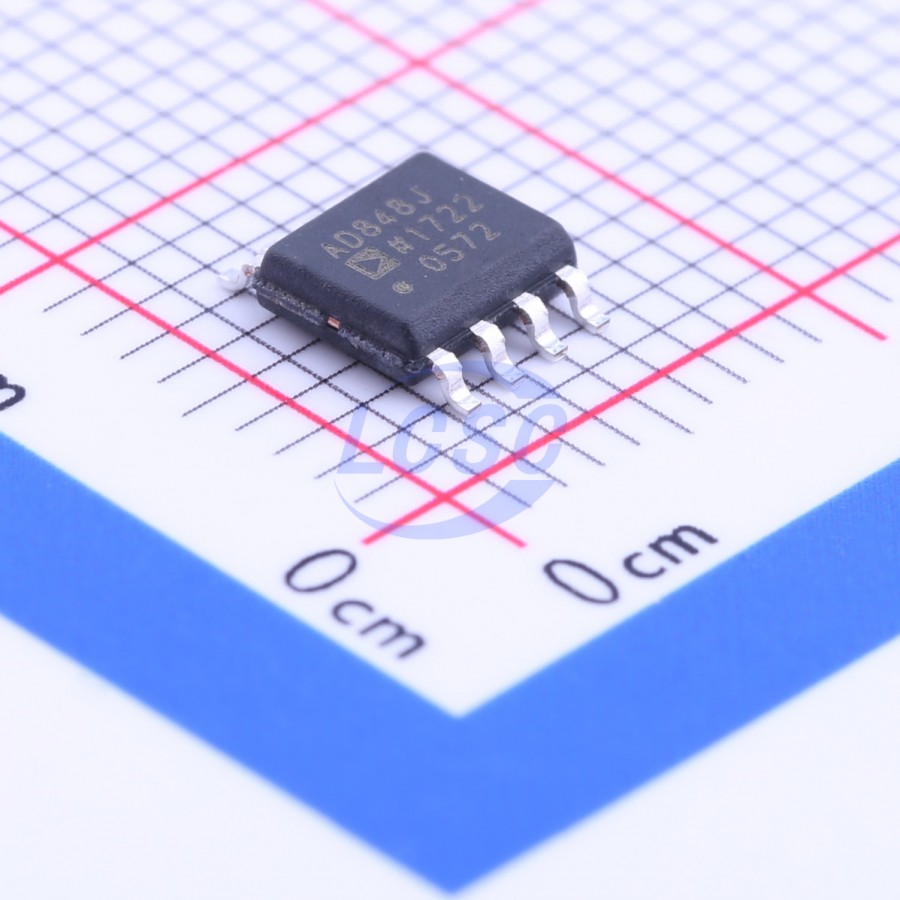

- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-pin Plastic (N), Small Outline (R), or · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +IN | input | +IN |
| 2 | -IN | input | -IN |
| 3 | NULL | passive | OFFSET NULL |
| 4 | OUTPUT | output | OUTPUT |
| 5 | -VS | power in | -VS |
| 6 | +VS | power in | +VS |
| 7 | NC | no connect | NC |
| 8 | NC | no connect | NC |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Differential Input Voltage | 6V | ± |
| Junction Temperature | 175°C | max |
권장 동작 조건
| Supply Voltage | 64.5V | min |
| Supply Voltage | 618V | max |
열 특성
- theta ja
- 155
오더링 코드
- JR2
- Small Outline (R-8) package, Tape and Reel
