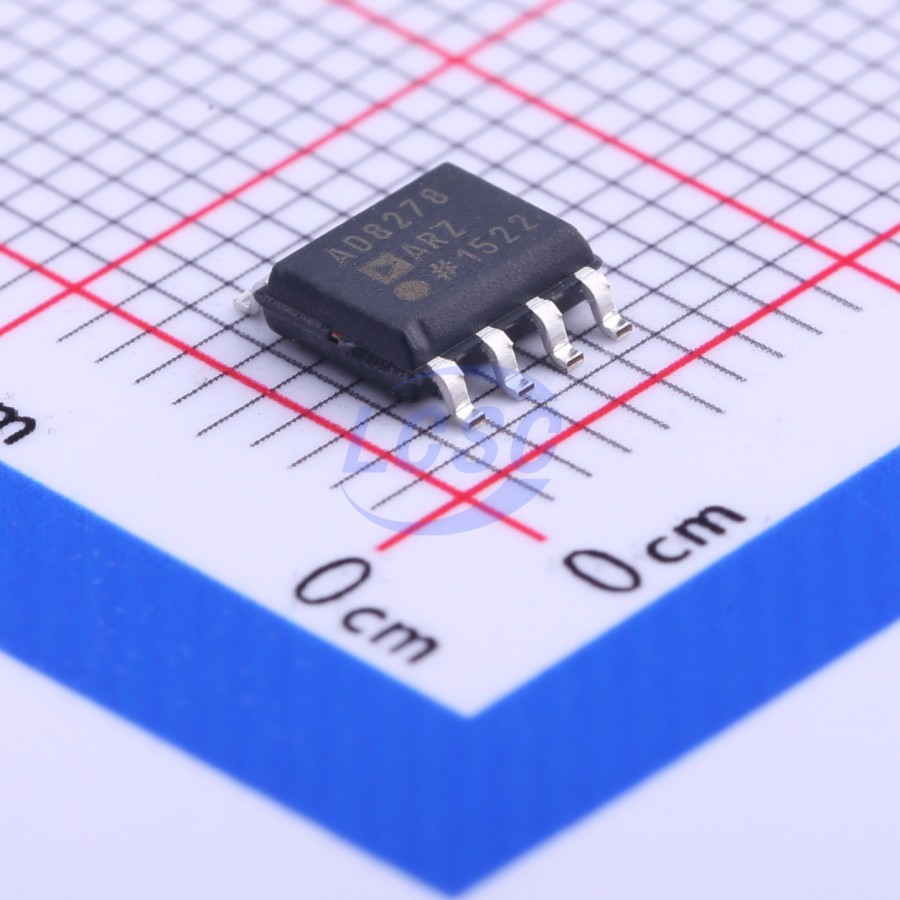

주요 스펙 요약(20)
- Common Mode Rejection Ratio Cmrr보강
- 80dB
- Gain Bandwidth Product검증
- 1MHz
- Ib Input Bias Current
- -
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage
- 50uV
- Maximum Power Supply Range Vdd Vss
- 36V
- Noise Density E N
- 47nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current
- 15mA
- Output Type
- -
- Quiescent Current
- 200uA
- Rail To Rail
- -
- Settling Time
- 9us
- Single Supply
- 2 to 36V
- Slew Rate검증
- 1.4V/us
- Dual Supply
- -18V~-2V;2V~18V
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC or 8-lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | REF | input | Reference Voltage Input |
| 2 | -IN | input | Inverting Input |
| 3 | +IN | input | Noninverting Input |
| 4 | -VS | power in | Negative Supply |
| 5 | SENSE | other | Sense Terminal |
| 6 | OUT | output | Output |
| 7 | +VS | power in | Positive Supply |
| 8 | NC | no connect | No Connect |
절대 최대 정격
| Supply Voltage | 18V | dual supply |
| Maximum Voltage at Any Input Pin | 40V | -VS + 40V or +VS - 40V |
| Storage Temperature Range | 65°C | -65 to +150 |
권장 동작 조건
| Single Supply Range | 2V | min |
| Single Supply Range | 36V | max |
| Dual Supply Range | 2V | min |
| Dual Supply Range | 18V | max |
열 특성
- theta ja
- 121
