주요 스펙 요약(19)
- features
- Single-ended to differential conversion;Differential to single-ended conversion;Overvoltage protection;Current limiting / short-circuit protection;Capacitive load driving;Integrated precision resistor network
- Gain Bandwidth Product
- 550kHz
- Ib Input Bias Current
- -
- Input Offset Voltage Drift Vos Tc
- 0.5uV/℃
- Vos Input Offset Voltage
- 100uV
- Maximum Power Supply Range Vdd Vss
- 36V
- Noise Density E N
- 65nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current
- 15mA
- Output Type
- Differential
- Quiescent Current
- 200uA
- Rail To Rail
- -
- Settling Time
- 15us
- Single Supply
- 2 to 36V
- Slew Rate
- 1.1V/us
- Common Mode Rejection Ratio Cmrr
- 86dB
- Dual Supply
- -18V~-2V;2V~18V

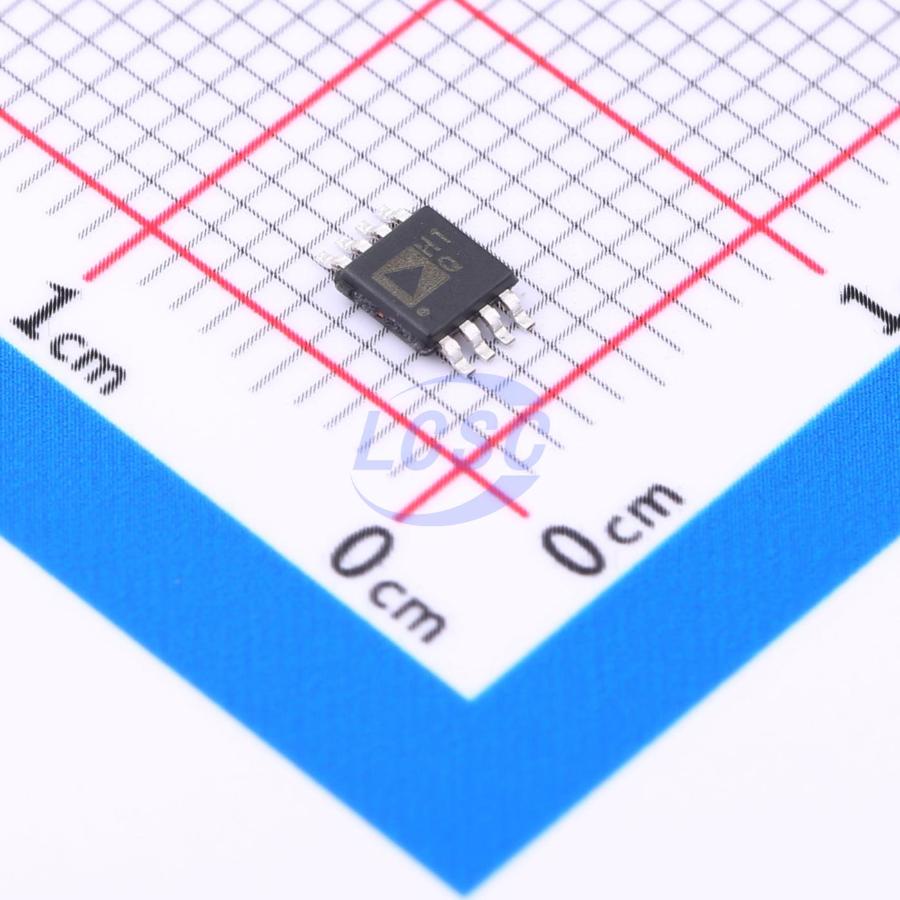

- package
- MSOP-8
