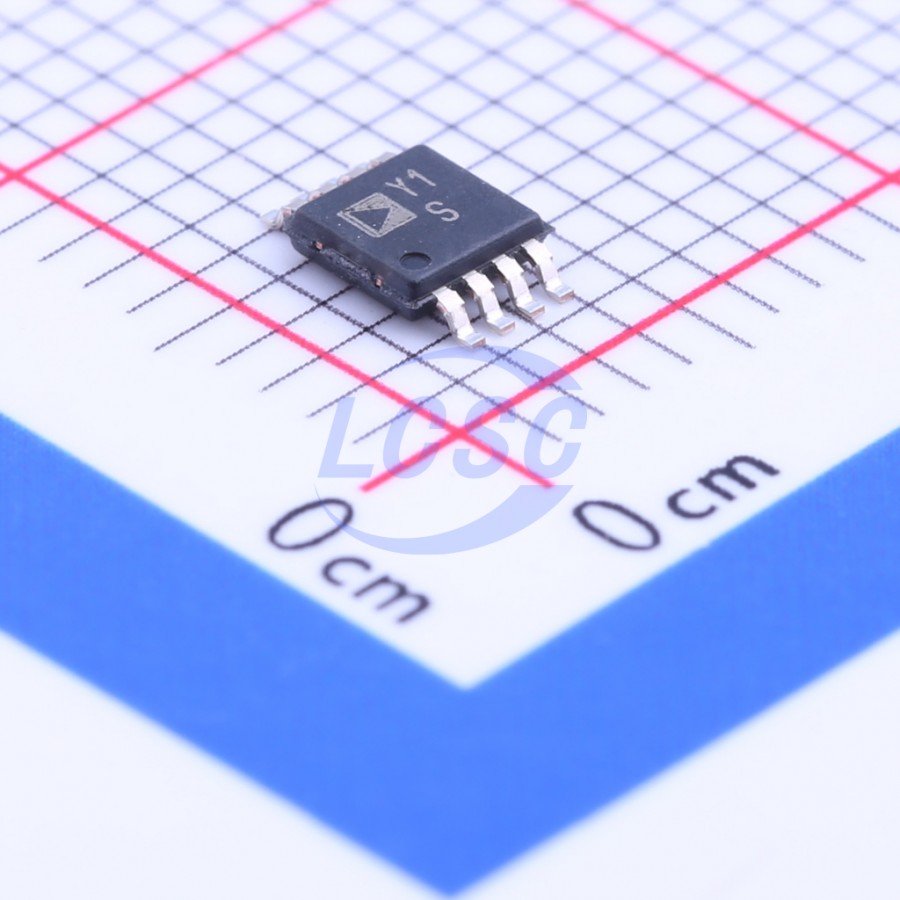

주요 스펙 요약(24)
- Common Mode Rejection Ratio Cmrr보강
- 100dB
- Gain Bandwidth Product검증
- -
- Ib Input Bias Current
- 20nA
- Input Offset Current Drift Ios Tc
- 5pA/℃
- Input Offset Voltage Drift Vos Tc
- 200nV/℃
- Vos Input Offset Voltage
- 200uV
- Maximum Power Supply Range Vdd Vss
- 36V
- Operating Temperature
- -40℃~+125℃
- Output Current
- 13mA
- Output Type
- -
- Power Supply Rejection Ratio Psrr
- 100dB
- Quiescent Current
- 350uA
- Rail To Rail
- Rail-to-Rail Output
- Settling Time
- 14us
- Single Supply
- 2.2 to 36V
- Slew Rate
- 0.8V/us
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Input Offset Current Ios
- 1.5nA
- Max Supply Voltage보강
- 36V
- Noise Density E N
- 24nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- MSOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead MSOP/SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | Negative Input |
| 2 | RG | passive | Gain Setting Pin |
| 3 | RG | passive | Gain Setting Pin |
| 4 | +IN | input | Positive Input |
| 5 | -VS | power in | Negative Supply |
| 6 | REF | other | Reference |
| 7 | VOUT | output | Output |
| 8 | +VS | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 18V | dual supply |
| Maximum Voltage at -IN or +IN | 40V | -VS + 40V |
| Minimum Voltage at -IN or +IN | 40V | +VS - 40V |
| REF Voltage | 18V | ±VS |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Maximum Junction Temperature | 140°C |
권장 동작 조건
| Single Supply Range | 2.2 to 36V | |
| Dual Supply Range | 1.5 to 18V | ± |
열 특성
- theta ja
- 135
오더링 코드
- ARMZ
- 8-Lead MSOP
- ARZ
- 8-Lead SOIC_N
