주요 스펙 요약(20)
- features
- Internally set gain;ESD protection
- Gain Bandwidth Product
- 900kHz
- Ib Input Bias Current
- 1.2nA
- Input Offset Current Drift Ios Tc
- 1.5pA/℃
- Input Offset Current Ios
- 500pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Vos Input Offset Voltage
- 150uV
- Maximum Power Supply Range Vdd Vss
- 36V
- Noise Density E N
- 45nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current
- 18mA
- Quiescent Current
- 1.2mA
- Settling Time
- 3.4us
- Single Supply
- 3.4 to 36V
- Slew Rate
- 5V/us
- Common Mode Rejection Ratio Cmrr
- 86dB
- Dual Supply
- -18V~-1.7V;1.7V~18V

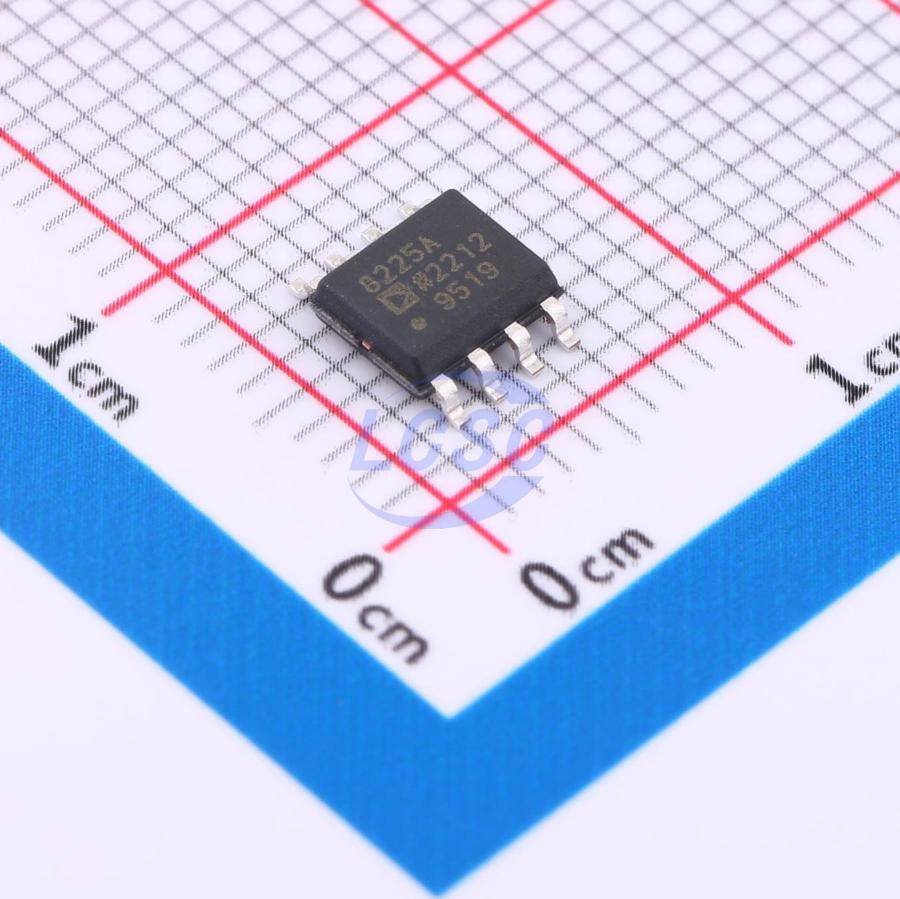

- package
- SOIC-8
- Power Supply Rejection Ratio Psrr
- 100dB
