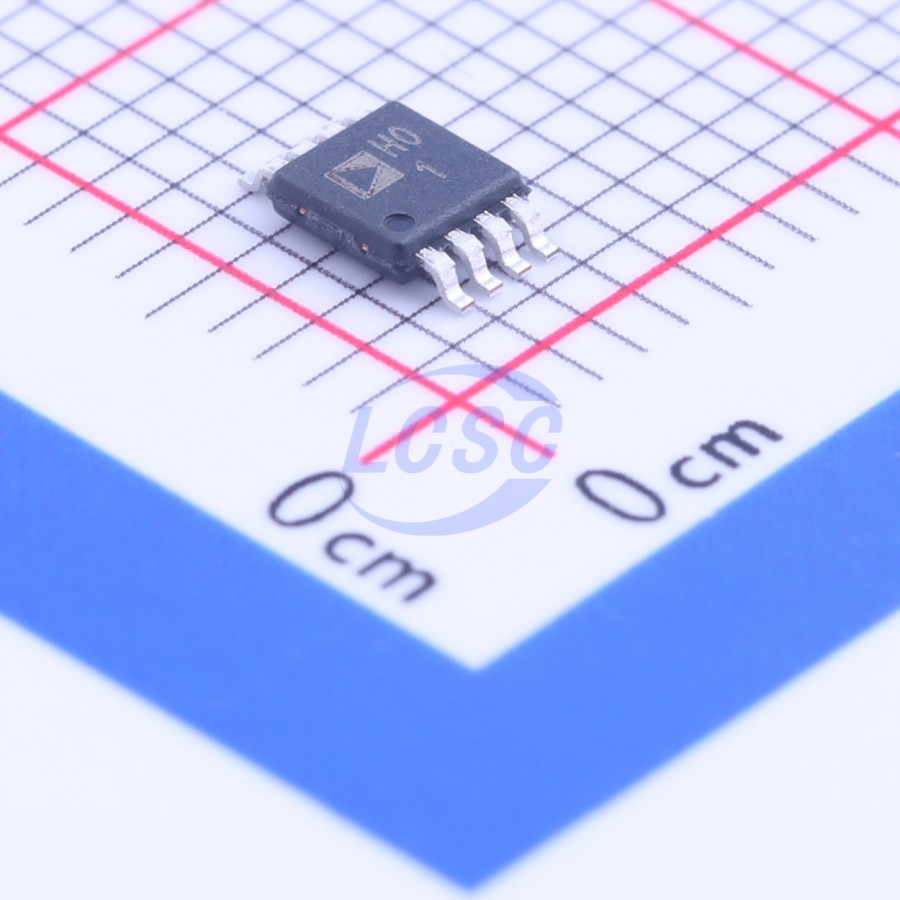

주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr보강
- 86dB
- Gain Bandwidth Product검증
- 1.5MHz
- Ib Input Bias Current
- 10pA
- Input Offset Current Ios
- 0.6pA
- Input Offset Voltage Drift Vos Tc
- 5uV/℃
- Vos Input Offset Voltage
- 125uV
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current
- 15mA
- Power Supply Rejection Ratio Psrr
- 100dB
- Quiescent Current
- 750uA
- Rail To Rail
- Rail-to-Rail Output
- Settling Time
- 5us
- Single Supply
- 4.5 to 36V
- Slew Rate검증
- 2V/us
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Input Bias Current보강
- 10pA
- Max Supply Voltage보강
- 36V
- Noise Density E N
- 14nV/√Hz@1kHz
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- MSOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | Negative Input Terminal (True Differential Input) |
| 2 | RG | passive | Gain Setting Terminals |
| 3 | RG | passive | Gain Setting Terminals |
| 4 | +IN | input | Positive Input Terminal (True Differential Input) |
| 5 | -VS | power in | Negative Power Supply Terminal |
| 6 | REF | input | Reference Voltage Terminal |
| 7 | VOUT | output | Output Terminal |
| 8 | +VS | power in | Positive Power Supply Terminal |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage (Common Mode) | VsV | ± |
| Differential Input Voltage | VsV | ± |
| Storage Temperature Range | -65 to 125°C | |
| Junction Temperature | 140°C | |
| ESD (Human Body Model) | 4kV | |
| ESD (Charge Device Model) | 1kV |
권장 동작 조건
| Supply Voltage | 4.5 to 36V | single |
| Supply Voltage | 2.25 to 18V | dual ± |
열 특성
- theta ja
- 135
등급 · 신뢰성
- aec q
- W grade qualified
- esd cdm
- 1 kV
- esd hbm
- 4 kV
오더링 코드
- ARMZ
- RoHS Compliant
- WARMZ
- Automotive Qualified
유사 부품
이 부품을 사용한 Reference Design
0건제조사가 검증한 시스템 회로 + BOM + Gerber 자료. 데이터시트의 typical circuit 보다 한 단계 완제품에 가까움.
