주요 스펙 요약(13)
- Common Mode Rejection Ratio Cmrr
- -68dB
- Gain Bandwidth Product검증
- -
- Ib Input Bias Current
- 7uA
- Input Offset Voltage Drift Vos Tc
- 6uV/℃
- Vos Input Offset Voltage
- 1mV
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- -
- Output Type
- Differential
- package

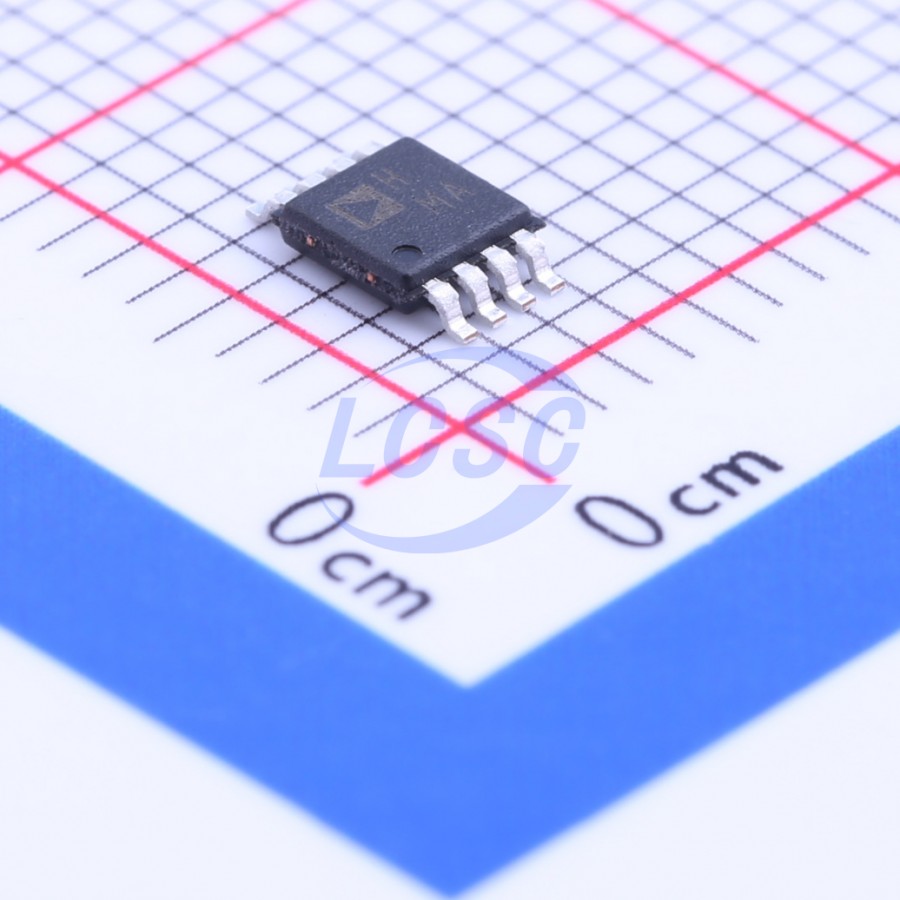

- MSOP-8
- Quiescent Current
- -
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Slew Rate검증
- 1200V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC or 8-lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | Negative Input |
| 2 | VOCM | input | Voltage applied to this pin sets the common-mode output voltage with a ratio of 1:1 |
| 3 | V+ | power in | Positive Supply Voltage |
| 4 | +OUT | output | Positive Output |
| 5 | -OUT | output | Negative Output |
| 6 | V- | power in | Negative Supply Voltage |
| 7 | NC | no connect | No Connect |
| 8 | +IN | input | Positive Input |
절대 최대 정격
| Supply Voltage | 5.5V | ± |
| VOCM | 5.5V | ±VS |
| Internal Power Dissipation | 250mW | |
| Operating Temperature Range | -40 to 125°C | |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Power Supply Range | 2.7 to 5.5V | + or ± |
열 특성
- theta ja
- 121
등급 · 신뢰성
- aec q
- AD8132W is AEC-Q100 qualified
