주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 60dB
- features
- -
- Gain Bandwidth Product검증
- 325MHz
- Ib Input Bias Current
- 500nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 750nA
- Input Offset Voltage Drift Vos Tc
- 3uV/℃
- Vos Input Offset Voltage
- 1mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Output Current
- -
- Quiescent Current
- 13.5mA
- Rail To Rail
- -
- Single Supply
- 3 to 10V
- Slew Rate검증
- 1.15V/ns
- Dual Supply
- -6V~-1.5V;1.5V~6V
- Max Supply Voltage보강
- 12.6V
- Noise Density E N
- 7nV/√Hz@100kHz
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

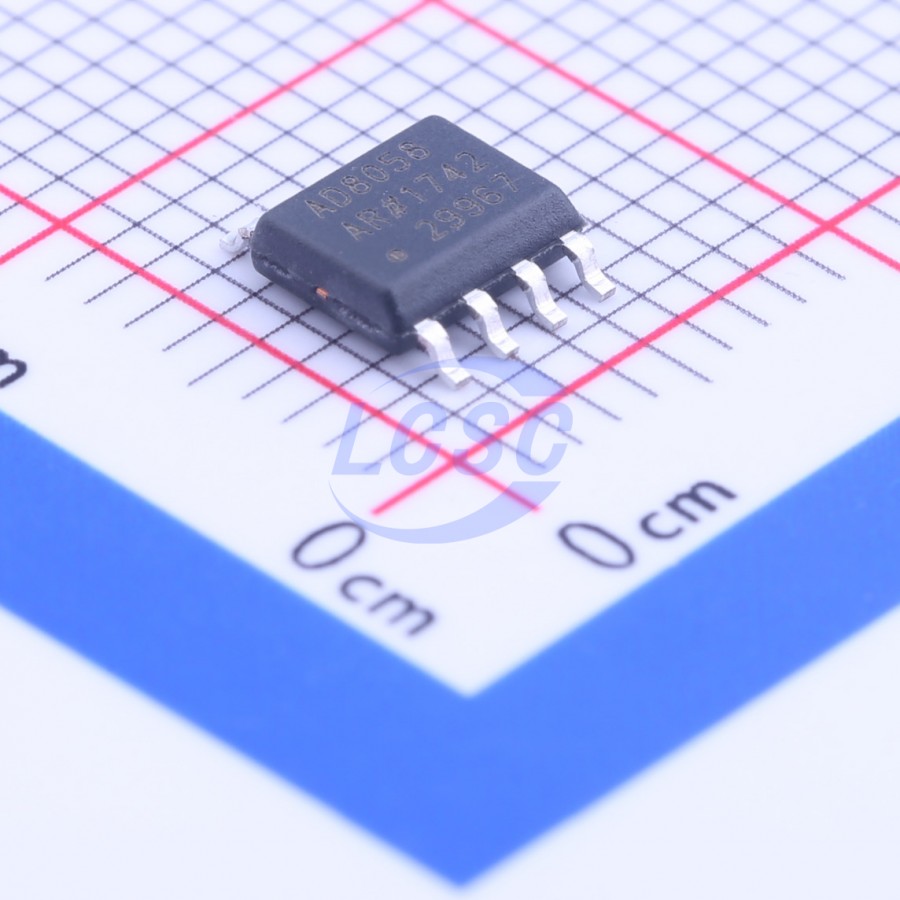

- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · R-8 (SOIC) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +IN1 | input | None |
| 2 | -IN1 | input | None |
| 3 | OUT1 | output | None |
| 4 | -VS | power in | None |
| 5 | +VS | power in | None |
| 6 | +IN2 | input | None |
| 7 | -IN2 | input | None |
| 8 | OUT2 | output | None |
절대 최대 정격
| Supply Voltage | 12.6V | +VS to -VS |
| Differential Input Voltage | 4.0V | ± |
| Storage Temperature Range | -65 to 125°C |
권장 동작 조건
| Supply Voltage Range | 3 to 12V | |
| Operating Temperature Range | -40 to 85°C | A grade |
열 특성
- unit
- °C/W
- theta ja
- 160
오더링 코드
- Z
- RoHS compliant
