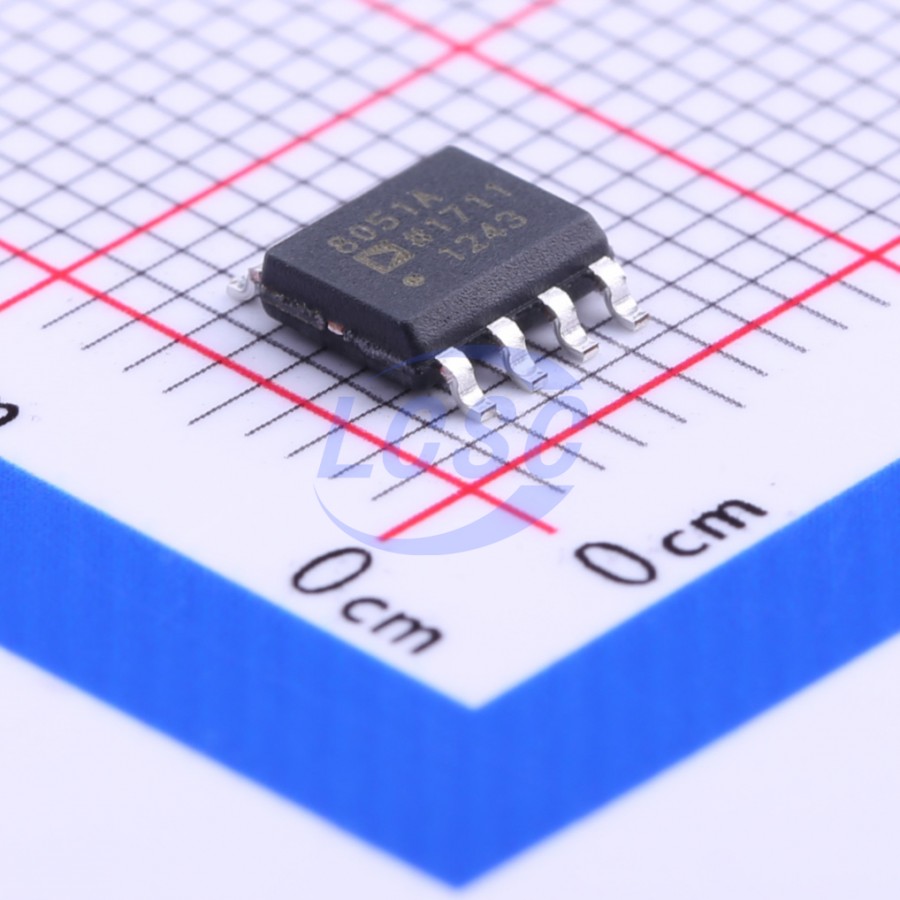

주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 88dB
- features
- -
- Gain Bandwidth Product검증
- 110MHz
- Ib Input Bias Current
- 2.5uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 750nA
- Input Offset Voltage Drift Vos Tc
- 10uV/℃
- Vos Input Offset Voltage
- 1.7mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 80mA
- Quiescent Current
- 4.4mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3 to 12V
- Slew Rate검증
- 145V/us
- Dual Supply
- -
- Max Supply Voltage보강
- 12.6V
- Noise Density E N
- 16nV/√Hz@10kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC-8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +IN | input | None |
| 2 | -IN | input | None |
| 3 | VOUT | output | None |
| 4 | -VS | power in | None |
| 5 | +VS | power in | None |
| 6 | NC | no connect | None |
| 7 | NC | no connect | None |
| 8 | NC | no connect | None |
절대 최대 정격
| Supply Voltage | 12.6V | |
| Input Voltage (Common Mode) | ±2.5V | |
| Differential Input Voltage | ±VSV |
권장 동작 조건
| Operating Temperature Range (A Grade) | -40 to 125°C |
열 특성
- theta ja
- 125
오더링 코드
- REEL7
- 7" Tape and Reel
