주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 67dB
- Gain Bandwidth Product검증
- 350MHz
- Ib Input Bias Current
- 750nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 25nA
- Input Offset Voltage Drift Vos Tc
- 4.5uV/℃
- Vos Input Offset Voltage보강
- 3mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Noise Density E N
- 8nV/√Hz@100kHz
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Output Current
- -
- Quiescent Current
- 1.5mA
- Rail To Rail
- -
- Single Supply
- 3 to 12V
- Slew Rate검증
- 425V/us
- Input Bias Current보강
- 750
- Max Supply Voltage보강
- 12.6V
- Number Of Circuits보강
- 2
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

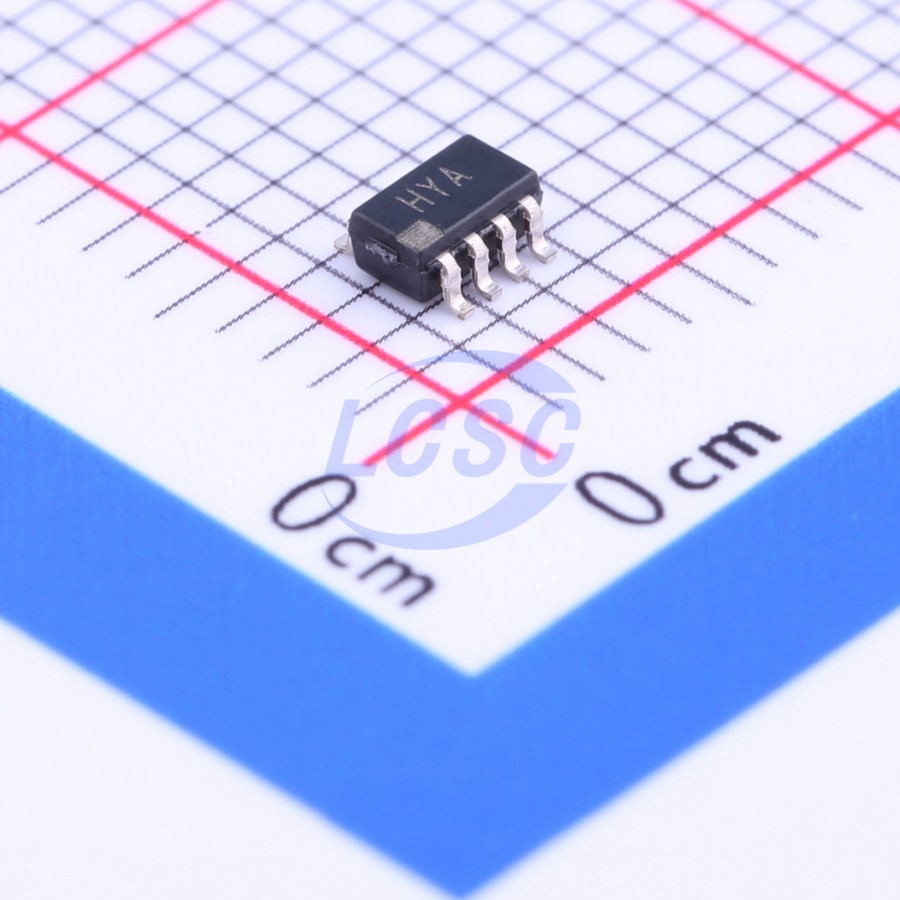

- package
- SOT-23-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC and 8-Lead SOT-23 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VOUT1 | output | None |
| 2 | –IN1 | input | None |
| 3 | +IN1 | input | None |
| 4 | –VS | power in | None |
| 5 | +VS | power in | None |
| 6 | –IN2 | input | None |
| 7 | +IN2 | input | None |
| 8 | VOUT2 | output | None |
절대 최대 정격
| Supply Voltage | 12.6V | |
| Common-Mode Input Voltage | ±VS | |
| Differential Input Voltage | 4V | |
| Storage Temperature Range | -65 to +125°C | |
| Operating Temperature Range | -40 to +85°C | |
| Lead Temperature (Soldering, 10 sec) | 300°C |
권장 동작 조건
| Supply Voltage | 3V | |
| Supply Voltage | 12V |
열 특성
- theta ja
- 125°C/W (SOIC-8), 210°C/W (SC70-5), 160°C/W (SOT-23-8)
