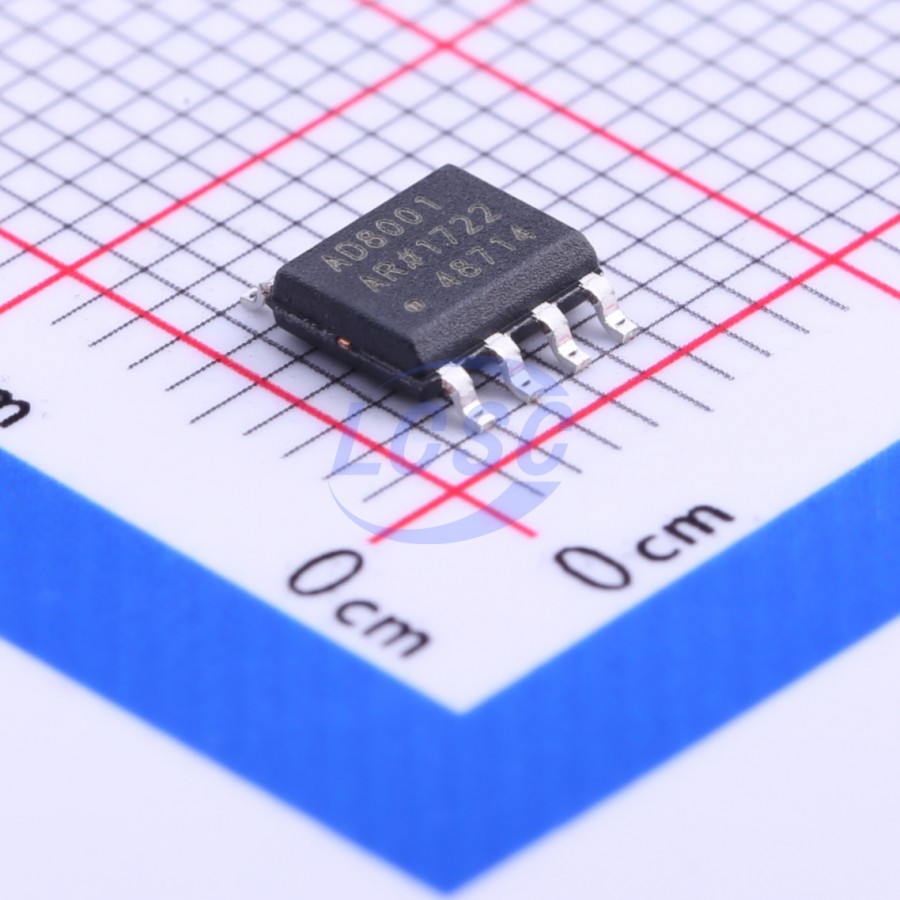

주요 스펙 요약(21)
- Common Mode Rejection Ratio Cmrr
- 50dB
- Dual Supply
- -6 to 6V
- Gain Bandwidth Product검증
- 880MHz
- Ib Input Bias Current
- 5uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- -
- Input Offset Voltage Drift Vos Tc
- 10uV/℃
- Vos Input Offset Voltage
- 2mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current검증
- 70mA
- Quiescent Current
- 5mA
- Rail To Rail
- -
- Single Supply
- -
- Slew Rate검증
- 1.2V/ns
- Max Supply Voltage보강
- 12.6V
- Noise Density E N
- 2nV/√Hz@10kHz
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- SOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead PDIP (N-8), CERDIP (Q-8) and SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +IN | input | None |
| 2 | -IN | input | None |
| 3 | V- | power in | None |
| 4 | NC | no connect | None |
| 5 | V+ | power in | None |
| 6 | NC | no connect | None |
| 7 | NC | no connect | None |
| 8 | OUT | output | None |
절대 최대 정격
| Supply Voltage | 12.6V | |
| Internal Power Dissipation PDIP | 1.3W | |
| Internal Power Dissipation SOIC | 0.8W | |
| Internal Power Dissipation CERDIP | 1.1W | |
| Internal Power Dissipation SOT-23-5 | 0.5W | |
| Input Voltage (Common Mode) | ±VSV | |
| Differential Input Voltage | 1.2V | ± |
권장 동작 조건
| Supply Voltage | 12V | single +12 V |
| Supply Voltage | 5V | ±5 V |
| Operating Temperature Range (A Grade) | -40 to 85°C |
열 특성
- theta ja
- 90°C/W (PDIP), 155°C/W (SOIC), 110°C/W (CERDIP), 260°C/W (SOT-23-5)
오더링 코드
- REEL7
- 7" Tape and REEL
- REEL
- 13" Tape and REEL
