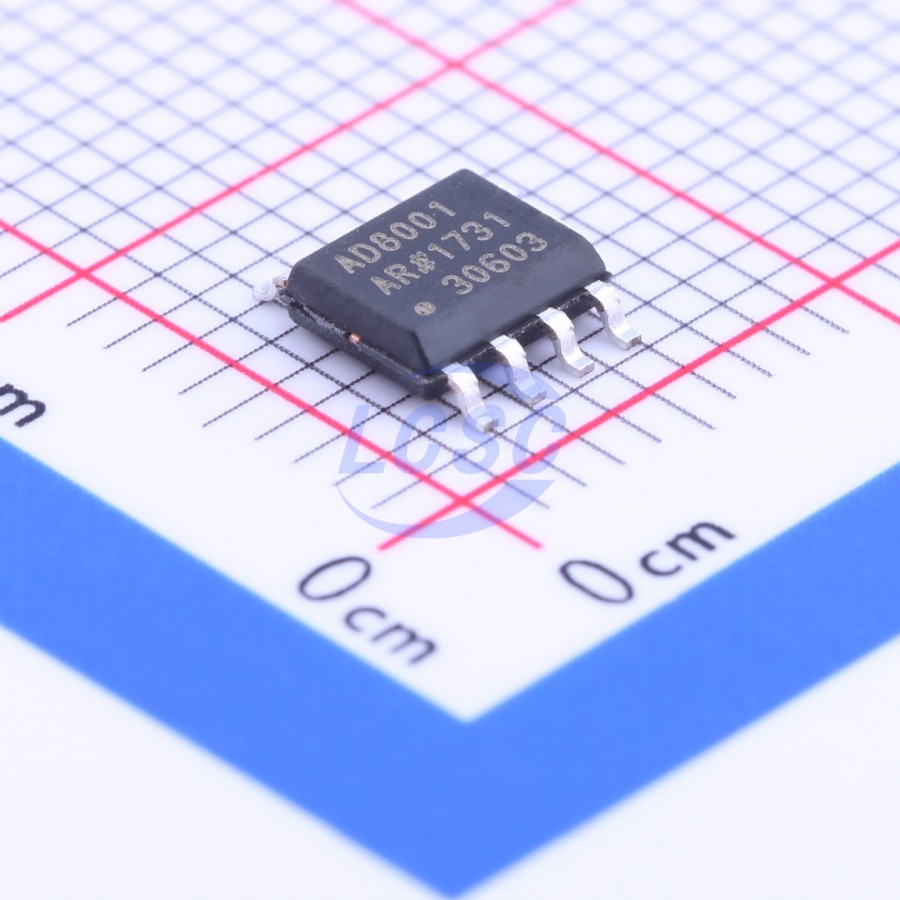

주요 스펙 요약(20)
- Common Mode Rejection Ratio Cmrr
- 50dB
- Dual Supply
- -6V~-3V;3V~6V
- Gain Bandwidth Product검증
- 880MHz
- Ib Input Bias Current
- 5uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- -
- Input Offset Voltage Drift Vos Tc
- 10uV/℃
- Vos Input Offset Voltage
- 2mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current검증
- 85mA
- Quiescent Current
- 5mA
- Rail To Rail
- -
- Single Supply
- -
- Slew Rate검증
- 1.2V/ns
- Noise Density E N
- 2nV/√Hz@10kHz
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC (R-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VOUT | output | None |
| 2 | +IN | input | None |
| 3 | -IN | input | None |
| 4 | V+ | power in | None |
| 5 | V- | power in | None |
| 6 | NC | no connect | None |
| 7 | NC | no connect | None |
| 8 | NC | no connect | None |
절대 최대 정격
| Supply Voltage | 12.6V | |
| Differential Input Voltage | 1.2V | ± |
권장 동작 조건
| Supply Voltage | 12V | single supply |
| Supply Voltage | 5V | ± |
열 특성
- theta ja
- 155
오더링 코드
- AR
- 8-Lead SOIC
- AR-REEL
- 13" Tape and REEL
- AR-REEL7
- 7" Tape and REEL
