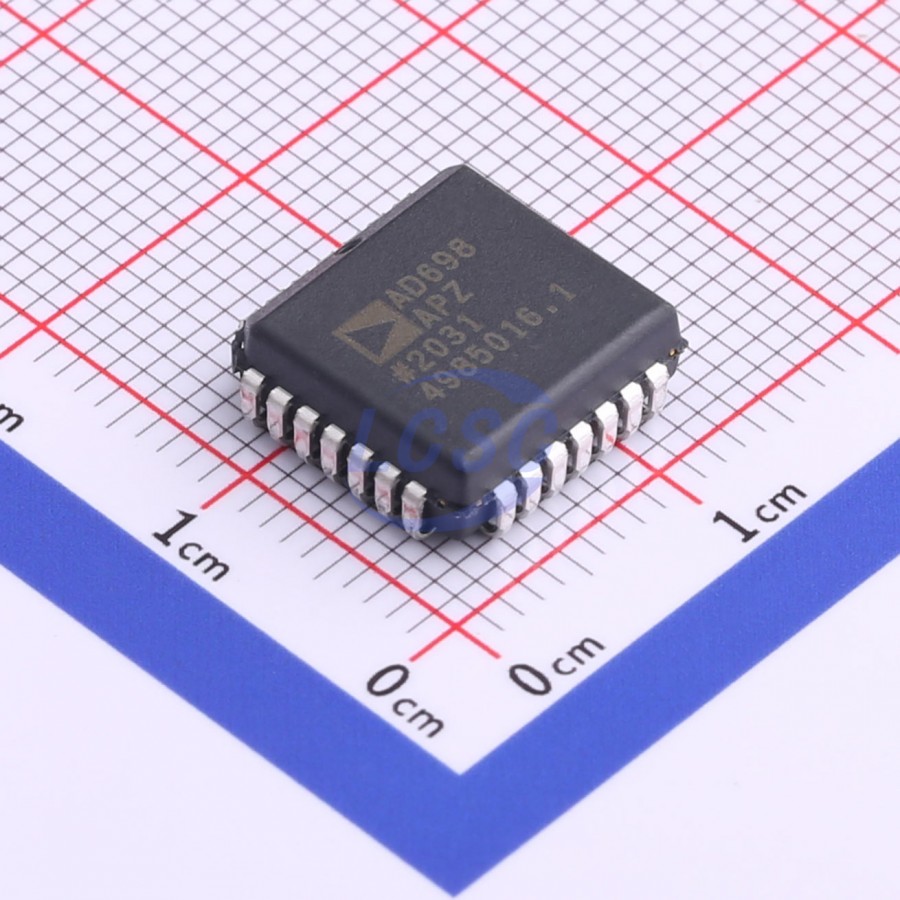

주요 스펙 요약(8)
데이터시트 대조보강 2
- Chip Type
- Sensor Conditioner
- Integral Non Linearity보강
- 0.05%
- Number Of Channels보강
- 2
- Operating Temperature
- -40℃~+85℃
- package
- PLCC-28(11.5x11.5)
- Voltage Reference
- Built-in
- Voltage Reference Drift
- 20ppm/℃
- Voltage Supply
- 13 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 28-Pin PLCC · 28 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +AIN | input | A Channel Input |
| 2 | -AIN | input | A Channel Input |
| 3 | -ACOMP | input | A Comparator Negative |
| 4 | +ACOMP | input | A Comparator Positive |
| 5 | OFF1 | other | Offset Adjustment 1 |
| 6 | OFF2 | other | Offset Adjustment 2 |
| 7 | +VS | power in | Positive Supply |
| 8 | -VS | power in | Negative Supply |
| 9 | EXC1 | output | Excitation Output 1 |
| 10 | EXC2 | output | Excitation Output 2 |
| 11 | FREQ2 | input | Frequency Input 2 |
| 12 | +BIN | input | B Channel Input Positive |
| 13 | -BIN | input | B Channel Input Negative |
| 14 | BFILT1 | output | B Filter 1 |
| 15 | BFILT2 | output | B Filter 2 |
| 16 | FREQ1 | input | Frequency Input 1 |
| 17 | LEV2 | input | Level 2 |
| 18 | LEV1 | input | Level 1 |
| 19 | NC | no connect | |
| 20 | NC | no connect | |
| 21 | -ACOMP | input | A Comparator Negative |
| 22 | +ACOMP | input | A Comparator Positive |
| 23 | -AIN | input | A Channel Input |
| 24 | +AIN | input | A Channel Input |
| 25 | SIG OUT | output | Signal Output |
| 26 | FEEDBACK | input | Feedback |
| 27 | OUT FILT | output | Output Filter |
| 28 | SIG REF | input | Signal Reference |
출처 1 ↗추출 신뢰도: 높음
패키지 정보
- package
- 28-Pin PLCC
절대 최대 정격
| Total Supply Voltage (+VS to –VS) | 36V | |
| Storage Temperature Range (P Package) | -65 to +150°C |
권장 동작 조건
| Operating Temperature Range (AD698AP) | -40 to +85°C |
열 특성
- unit
- °C/W
- theta ja
- 60
- theta jc
- 30
- qualifier
- P Package
오더링 코드
- AP
- 28-Pin PLCC
