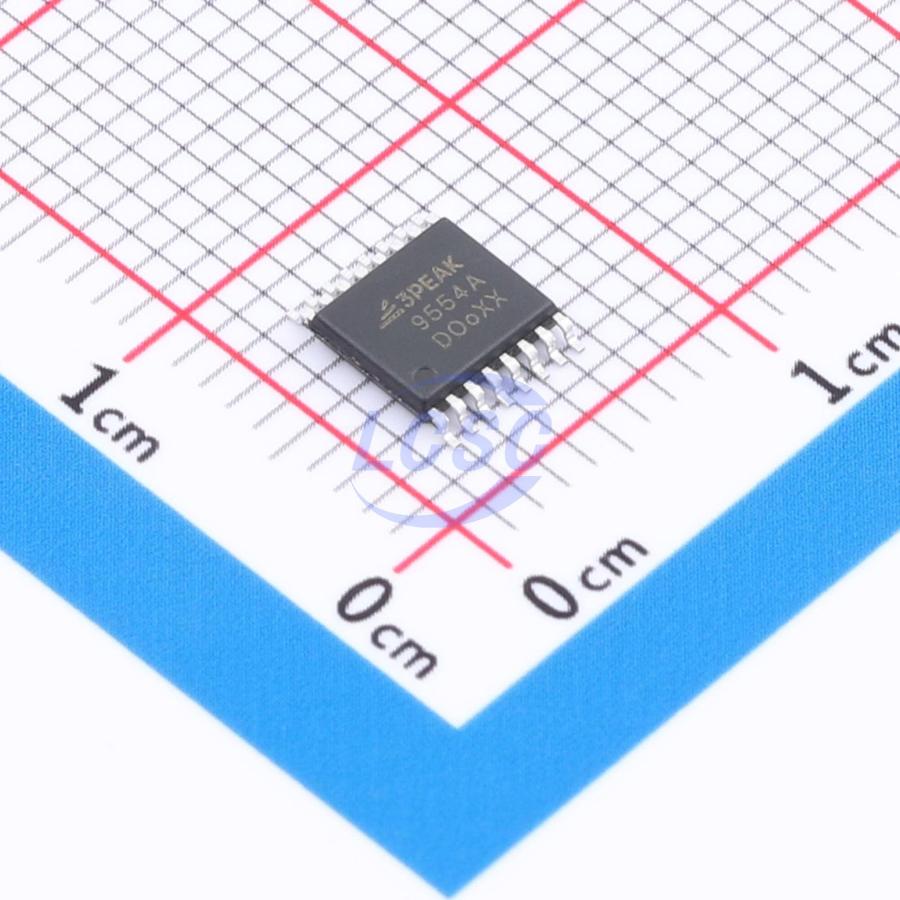

주요 스펙 요약(12)
데이터시트 대조보강 2정정 1
- Data Rate보강
- 400-kHz
- High Level Output Current
- 10mA
- interface
- I2C
- Interrupt Output
- Interrupt Output
- Number Of Channels보강
- 8
- Number Of I O
- 8
- Number Of Supporting Devices
- 8
- Operating Temperature
- -40℃~+125℃;-40℃~+105℃
- Output Type
- Push-pull
- package정정
- TSSOP16
- Quiescent Supply Current
- 190nA
- Voltage Supply
- 1.65 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP16 · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Address input 0. Connect directly to VCC or ground |
| 2 | A1 | input | Address input 1. Connect directly to VCC or ground |
| 3 | A2 | input | Address input 2. Connect directly to VCC or ground |
| 4 | P0_0 | bidirectional | P-port I/O. Push-pull design structure. |
| 5 | P0_1 | bidirectional | P-port I/O. Push-pull design structure. |
| 6 | P0_2 | bidirectional | P-port I/O. Push-pull design structure. |
| 7 | P0_3 | bidirectional | P-port I/O. Push-pull design structure. |
| 8 | GND | power in | Ground |
| 9 | P0_4 | bidirectional | P-port I/O. Push-pull design structure. |
| 10 | P0_5 | bidirectional | P-port I/O. Push-pull design structure. |
| 11 | P0_6 | bidirectional | P-port I/O. Push-pull design structure. |
| 12 | P0_7 | bidirectional | P-port I/O. Push-pull design structure. |
| 13 | INT | output | Interrupt output. Connect to VCC through a pull-up resistor |
| 14 | SCL | input | Serial clock bus. Connect to VCC through a pull-up resistor |
| 15 | SDA | input | Serial data bus. Connect to VCC through a pull-up resistor |
| 16 | VCC | power in | Supply voltage |
출처 1 ↗추출 신뢰도: 높음
패키지 정보
- msl
- MSL3
- package
- TSSOP16
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | 6V | |
| Output Voltage | 6V | |
| Input Clamp Current, VI < 0 | -20mA | |
| Output Clamp Current, VO < 0 | -20mA | |
| Input-Output Clamp Current, VO < 0 or VO > VCC | ±20mA | |
| Continuous Output Low Current, VO = 0 to VCC | 50mA | |
| Continuous Output High Current, VO = 0 to VCC | -50mA | |
| Continuous Current through GND | -250mA | |
| Continuous Current through VCC | 160mA | |
| Maximum Junction Temperature | 150°C | |
| Storage Temperature | -65 to 150°C |
권장 동작 조건
| Supply Voltage | 1.65 to 5.5V | |
| Operating Temperature Range (VCC = 1.65 ~ 3.6 V) | -40 to 125°C | |
| Operating Temperature Range (VCC = 4.5 ~ 5.5 V) | -40 to 105°C |
열 특성
- unit
- °C/W
- theta ja
- 120
- theta jc
- 61
등급 · 신뢰성
- esd cdm
- ±1.5 kV
- esd hbm
- ±4 kV
오더링 코드
- -TS3R
- TSSOP16 package, Tape and Reel
